Construct Gallery

9 posts, 0 answers
  1. Joe Bohen
    Joe Bohen avatar
    62 posts
    Member since:
    May 2009

    Posted 18 Oct 2010 Link to this post

    Hi
    I would like to build an application like the Integration Business cards example Could you tell me how to construct or add a gallery to a form?

  2. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 21 Oct 2010 Link to this post

    Hi Joe Bohen,

    Thank you for contacting us.

    The whole implementation of this example is contained in the examples solutions that come with the RadControls for WinForms suite. You can find these solutions at Start >> Programs >> Telerik >> RadControls for WinForms [version] >> VS [version] Demos. After you open the preferred solution, navigate to Integration >> Business Card folder which contains the source files of the gallery. Feel free to examine and incorporate these files in your project.

    I hope you find this information helpful. If there is anything else I can assist you with, do not hesitate to contact me.

    Kind regards,
    Stefan
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Joe Bohen
    Joe Bohen avatar
    62 posts
    Member since:
    May 2009

    Posted 18 Nov 2010 Link to this post

    I have attempted to replicate the business cards example supplied in the integration samples winforms Q2. I am have been unable to add scrollbars to the gallery when populating the gallery with a large number of business cards.  How would I achieve this whilst maintaining the functionality of the sample provided.

  5. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 23 Nov 2010 Link to this post

    Hello Joe Bohen,

    Thank you for writing.

    The scrolling functionality in our example is achieved by setting the AutoScroll property for RadPanel to true. When this does not work in your case, I would like to kindly ask you to open a new support ticket where you can send us with your application. This will allow us to investigate the issue in detail and provide you with further assistance.

    I am looking forward to your reply.


    All the best,
    Stefan
    the Telerik team
    Get started with RadControls for WinForms with numerous videos and detailed documentation.
  6. Vince
    Vince avatar
    3 posts
    Member since:
    Jan 2012

    Posted 12 Jan 2012 Link to this post

    Hi ..
       We brought the telerik product.. I had added more than 200 business cards in gallery..  But i cant see all the cards because the scrollbar option is not available in gallery..Pls help me out to solve this issue...
  7. Vince
    Vince avatar
    3 posts
    Member since:
    Jan 2012

    Posted 14 Jan 2012 Link to this post

    Hi,
    Pls do reply for my above post.......
  8. Stefan
    Admin
    Stefan avatar
    2891 posts

    Posted 16 Jan 2012 Link to this post

    Hi Vince,

    Thank you for writing.

    Have you tried setting the AutoScroll property of the panel to true, as I have suggested to Joe? If you did and this did not help, we will need to investigate your project locally too, so please open a new support ticket where you can attach it and we will provide you with further assistance.

    Kind regards,
    Stefan
    the Telerik team

    SP1 of Q3’11 of RadControls for WinForms is available for download (see what's new).

  9. Vince
    Vince avatar
    3 posts
    Member since:
    Jan 2012

    Posted 18 Jan 2012 Link to this post

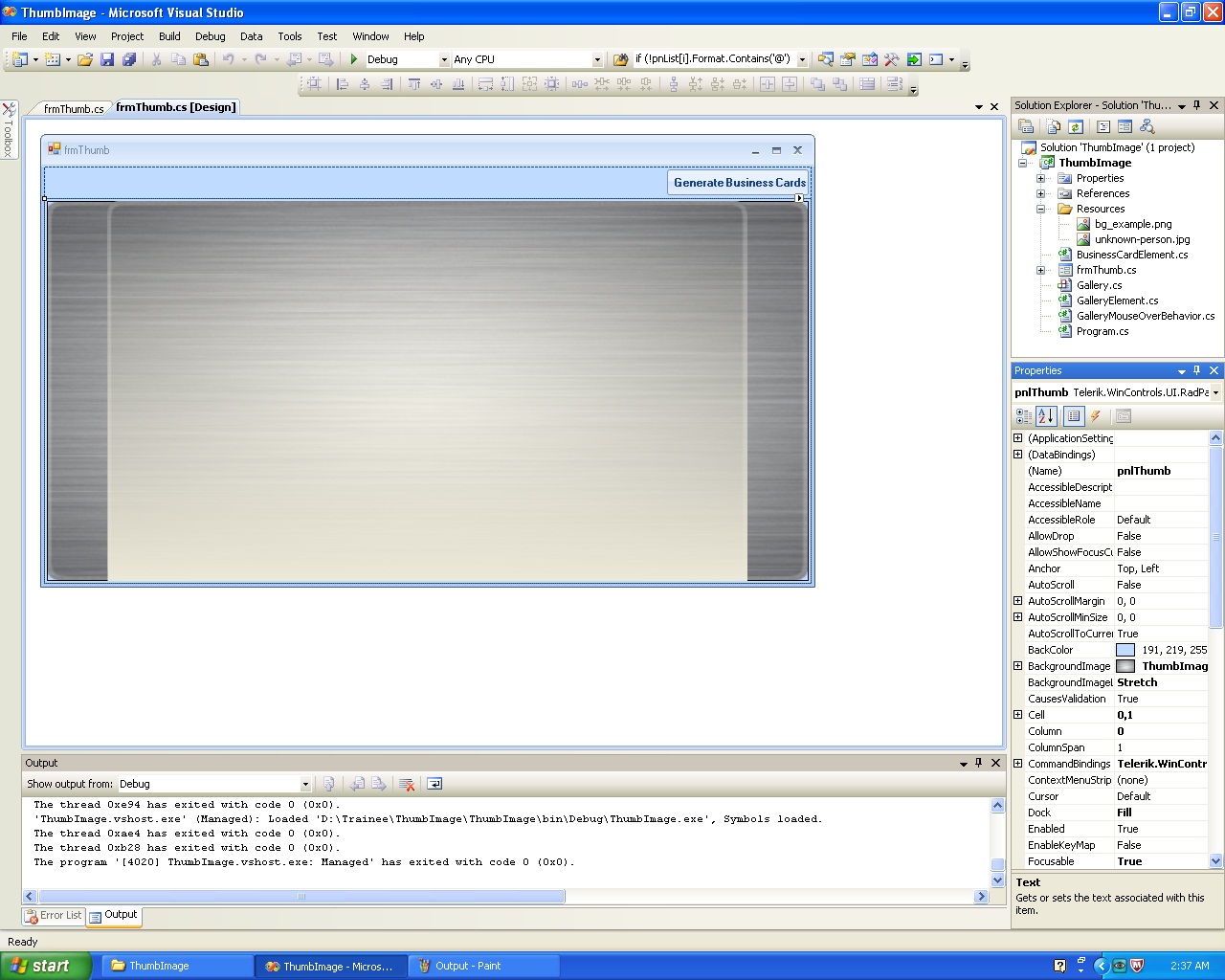

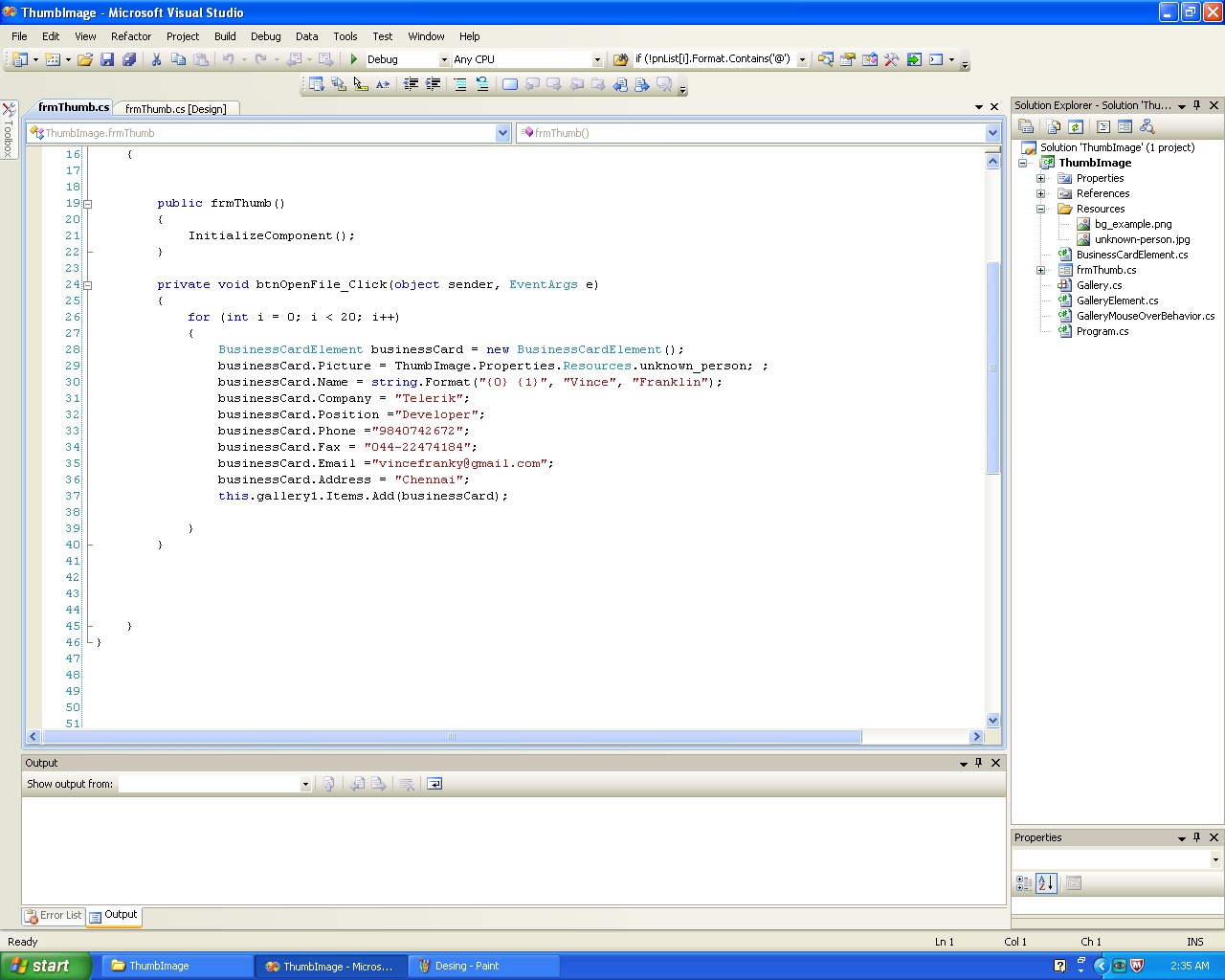

    Dear Stefan,

    As you suggest, I herewith attached the solution for your reference.

    I simulated the business card sample exactly the same as that of Demo.

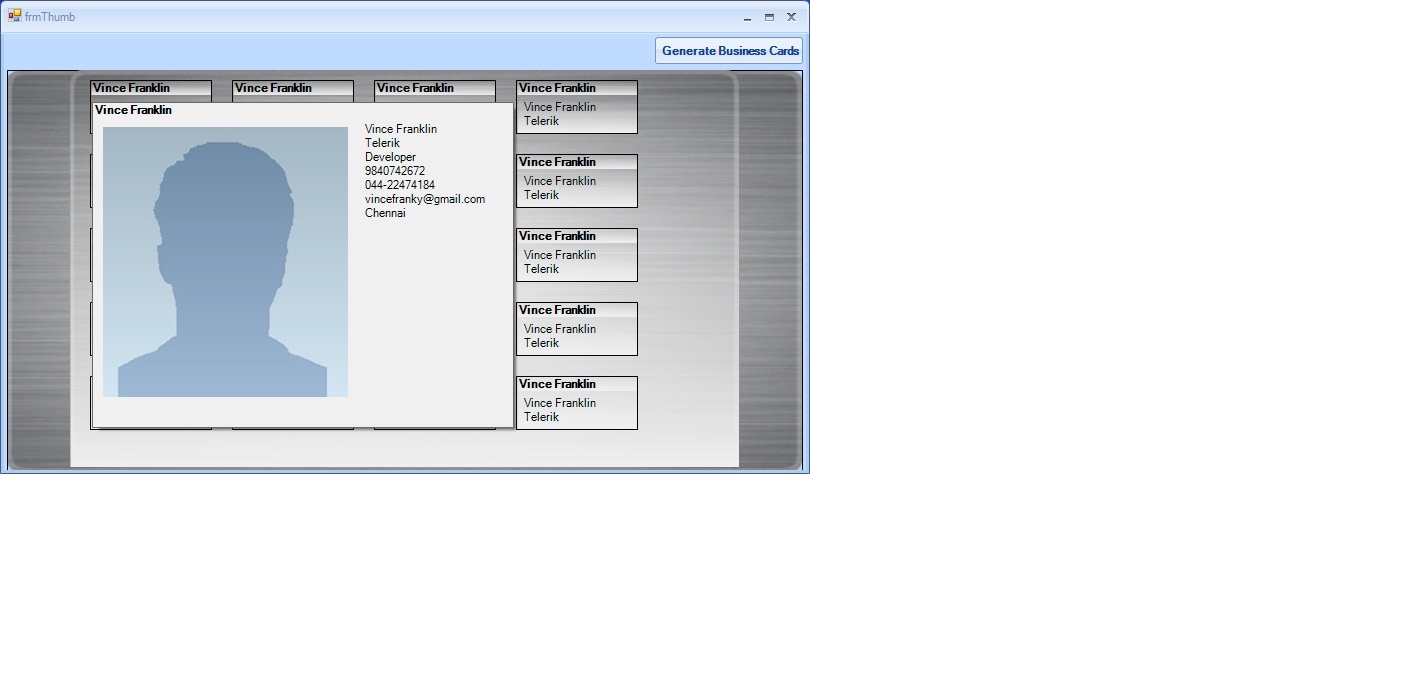

    Now, I want a horizontal or vertical scroll bar in Gallery element so that I could view all business cards.

    I have also lincense account technology@acurussolutions.com

    Thanks in Advance.
  10. Ivan Todorov
    Admin
    Ivan Todorov avatar
    688 posts

    Posted 20 Jan 2012 Link to this post

    Hello Vince,

    We have a couple of new controls that help you achieve this scenario without having to implement scrolling functionality from scratch, which is the case with the old Business Cards example. I have attached two sample projects.

    The first one demonstrates using our new RadPanorama control for achieving the same
    functionality. However, if you are going to load lots of items (100+), this control might not be applicable since it does not virtualize its elements and this may result in a poor performance.

    The second sample project demonstrates using RadListView with custom visual items. RadListView uses virtualized visual items so adding even hundreds of items to it should not affect the performance.

    Since I am not sure exactly which version are you using, please note that RadListView was introduces with Q2 2011 and RadPanorama was introduced with Q3 2011.

    I hope you find this useful.

    Feel free to contact if you have any further questions.

    Regards,
    Ivan Todorov
    the Telerik team

    SP1 of Q3’11 of RadControls for WinForms is available for download (see what's new).
