Chunk Border Color

2 posts, 0 answers
  1. chris
    chris avatar
    1 posts
    Member since:
    Mar 2009

    Posted 21 Apr 2009 Link to this post

    Hello, Ive been testing some of your controls and I love them, they are awesome. But Iam having a problem with the RadRibbonBar control. I cant find how to change a chunks border color. It seems like this should be really easy but I cant find how to do it anywhere. Ive tried using the theme builder but it seems like the designer stops just short of having the chunks in it. The theme builder stops at ExpandableStackLayout with nothing below it in the tree and if I use Edit UI Elements thats where all of the chunks properties are located. Now if try to use Edit UI Elements to try to change the chunks properties it only changes the "add new group" border color in Visual Studio's designer not any of the existing chunks border colors. I have also tried changing the color through code but I cant find a border color property anywhere. I know this has to be possible because the different themes the control comes with have different color borders on their chunks. Can you please point me in the right direction with a bit of sample code. I'm probably going to feel really stupid when you show me.... probably right in front of my face. Thanks for the help and for a great product.

  2. Deyan
    Deyan avatar
    2026 posts

    Posted 22 Apr 2009 Link to this post

    Hello chris,

    Thanks for contacting us. I am happy to hear that you like our products.

    In order to change the color of the border of a RadRibbonBarGroup (formerly called RadRibbonBarChunk), you can use the Edit UI Elements dialog. However, it is important to open this dialog by selecting the RadRibbonBarGroup and clicking on the Smart Tag of the Group so that the Edit UI Elements dialog is opened for this element.

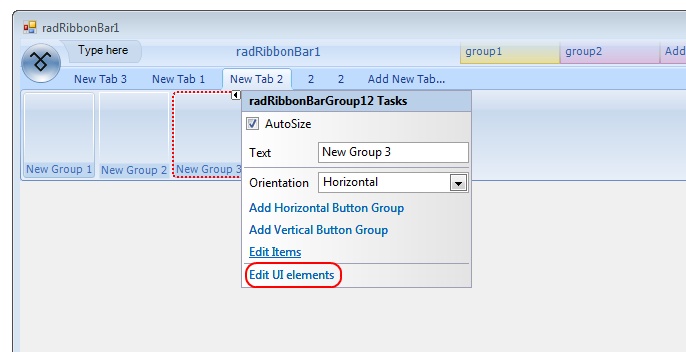

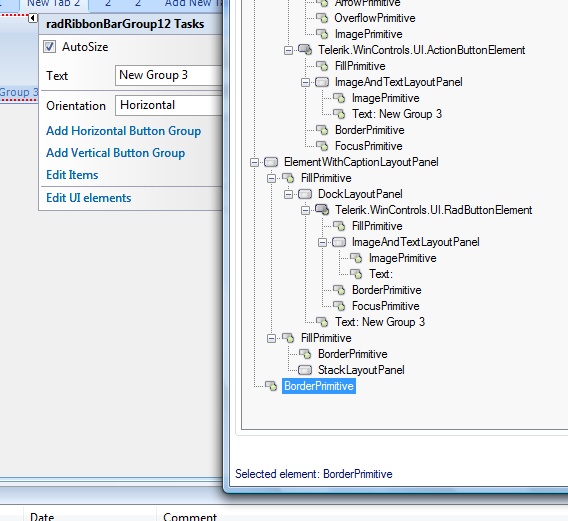

    I have attached two screenshots that should help you to achieve your goal.

    Do not hesitate to write back if you need further assistance.

    the Telerik team
