Chart XY alignment issue

Thread is closed for posting
2 posts, 1 answers
  1. Satish
    Satish avatar
    10 posts
    Member since:
    Apr 2012

    Posted 14 May 2012 Link to this post

    Hello Telerik,

    Am having some pretty intresting issues in radchart development.
    Please find my below code. below code is pulling the results on to the chart. but those are not aligning at the appropriate position.

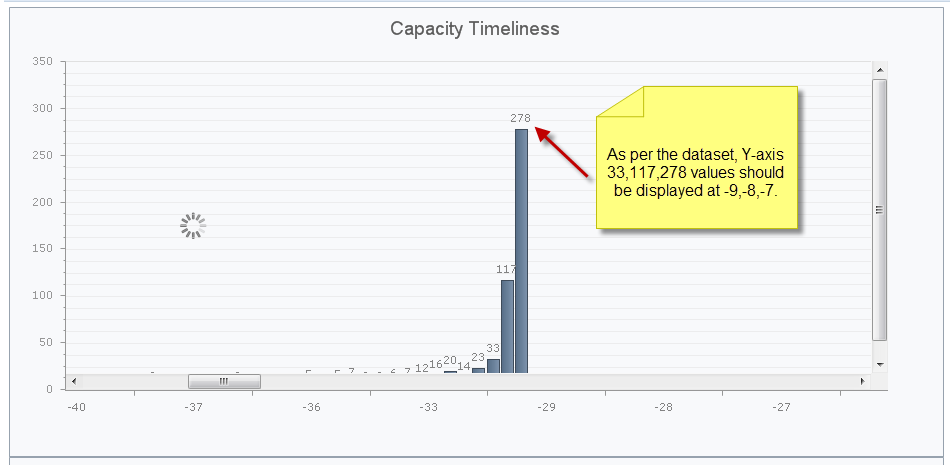

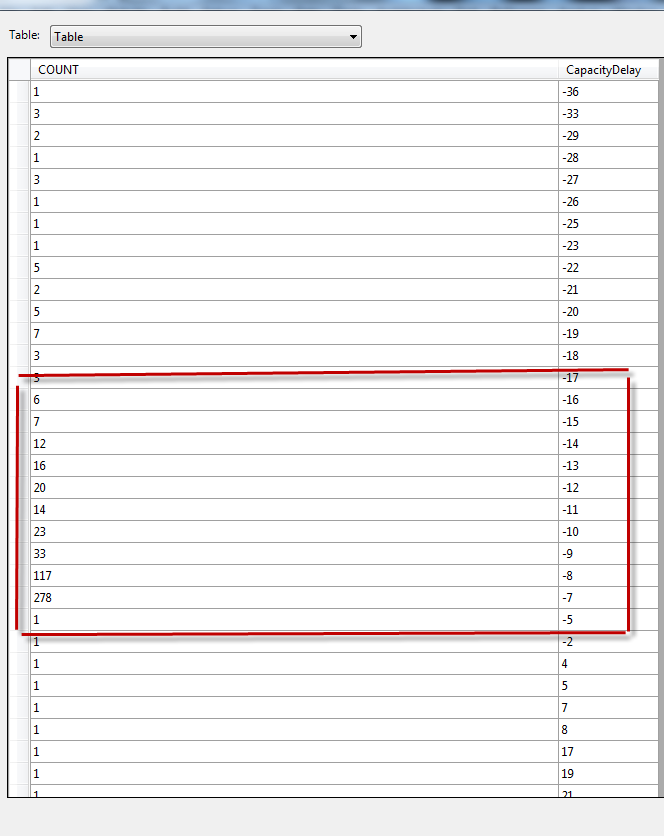

    Please find the attached dataset and resulted screen.


    Code which is pulling the radchart details:

    Private





    Sub ChartLoad1(ByRef ds As DataSet, ByRef radchartcontrole As RadChart, ByRef monthlyradchartcontrole As RadChart, ByRef dataXColumnName As String, ByRef dataYColumnName As String,







    ByRef xaxislableName As String, ByRef yaxislableName As String, ByRef monthlyXaxislableName As String, ByRef monthlyYaxislableName As String,







    ByRef monthlyYaxisDataColumn As String, ByRef monthlyXaxisDataColumn As String, ByRef avgDataColumn As String, ByRef charttableValue As Int32,







    ByRef monthlytableValue As Int32, ByRef avgTableValue As Int32, ByRef chartTitle As String, ByRef updatePaneltoHide As UpdatePanel, ByRef timeLinesAvgLabel As String)








    Dim r As New Random()







    Dim rowcount As Int32= 0







    Dim dt As DataTable = ds.Tables.Item(0)







    Dim list As New List(Of StressClass)







    For Each dr As DataRow In dt.Rows







    Dim sc As New StressClass()



    sc.Count =



    Convert.ToInt32(dr("COUNT"))



    sc.CapacityDelay =



    Convert.ToInt32(dr("CapacityDelay"))



    list.Add(sc)





    Next







    Dim series As New ChartSeries()



    series.Type =



    ChartSeriesType.Bar



    series.DataXColumn =



    "CapacityDelay"



    series.DataYColumn =



    "COUNT"





    radchartcontrole.Clear()

    radchartcontrole.Series.Add(series)

    radchartcontrole.DataSource = list

    radchartcontrole.DataBind()



    radchartcontrole.PlotArea.XAxis.AutoScale =



    False



    radchartcontrole.PlotArea.XAxis.IsZeroBased =



    False



    radchartcontrole.Series(0).Appearance.BarWidthPercent =



    CType("10", Decimal)





    radchartcontrole.Series(0).DataYColumn = series.DataXColumn

    radchartcontrole.PlotArea.XAxis.DataLabelsColumn = series.DataYColumn





    End Sub






    Public





    Class StressClass






    Private _count As Integer






    Public Property Count() As Integer






    Get






    Return _count






    End Get






    Set(ByVal value As Integer)


    _count = value





    End Set






    End Property








    Private _capacityDelay As Integer






    Public Property CapacityDelay() As Integer






    Get






    Return _capacityDelay






    End Get






    Set(ByVal value As Integer)


    _capacityDelay = value





    End Set






    End Property




    End





    Class






    ASPX code:


    <





    telerik:RadChart AutoLayout="True" Height="450px" ID="CapacityRadChart" runat="server"






    Skin="WebBlue" Width="935px">






    <ClientSettings EnableZoom="True" ScrollMode= "Both" XScale="10" />






    <Appearance>






    <FillStyle MainColor="249, 250, 251">






    </FillStyle>






    <Border Color="160, 170, 182" />






    </Appearance>






    <Legend Visible="False">






    <Appearance Dimensions-Margins="17.6%, 3%, 1px, 1px" Dimensions-Paddings="2px, 8px, 6px, 3px"






    Position-AlignedPosition="TopRight" Visible="False">






    <ItemTextAppearance TextProperties-Color="102, 102, 102">






    </ItemTextAppearance>






    <FillStyle MainColor="216, 222, 227">






    </FillStyle>






    <Border Color="160, 170, 182" />






    </Appearance>






    </Legend>






    <PlotArea>






    <YAxis AutoScale="True" AxisMode="Extended">






    <Appearance Color="160, 160, 160">






    <MajorGridLines Color="227, 227, 227" />






    <MinorGridLines Color="227, 227, 227" />






    <TextAppearance AutoTextWrap="False" />






    </Appearance>






    <AxisLabel>






    <TextBlock>






    <Appearance TextProperties-Color="140, 140, 140">






    </Appearance>






    </TextBlock>






    </AxisLabel>






    </YAxis>






    <EmptySeriesMessage Visible="True">






    <Appearance Visible="True">






    </Appearance>






    </EmptySeriesMessage>






    <XAxis AutoScale="True" DataLabelsColumn="RIID's" MaxValue="0" Step="0" MinValue="-30000000">






    <Appearance Color="160, 160, 160">






    <MajorGridLines Color="227, 227, 227" Width="0" />






    <TextAppearance AutoTextWrap="True" TextProperties-Color="140, 140, 140" />






    </Appearance>






    <AxisLabel>






    <TextBlock>






    <Appearance TextProperties-Color="140, 140, 140">






    </Appearance>






    </TextBlock>






    </AxisLabel>






    </XAxis>






    <Appearance Dimensions-Margins="18%, 24%, 12%, 10%">






    <FillStyle FillType="Solid" MainColor="">






    </FillStyle>






    </Appearance>






    </PlotArea>






    <ChartTitle>






    <Appearance>






    <FillStyle MainColor="">






    </FillStyle>






    </Appearance>






    <TextBlock Text="Capacity Timeliness">






    <Appearance TextProperties-Color="102, 102, 102" TextProperties-Font="Arial, 14pt">






    </Appearance>






    </TextBlock>






    </ChartTitle>






    </telerik:RadChart>




    Thank You,
  2. Answer
    Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 15 May 2012 Link to this post

    Hi Satish,

    I have created a project based on the code that you provided. I had to add some code in order to compile and run it.

    After some investigation I have found several errors in your code such as:
    series.DataYColumn = "COUNT" 'wrong

    You are passing a list of objects to the source of the chart, but these objects do not have a COUNT property, they have a Count property.

    series.DataYColumn = "Count" 'correct

    I have attached a project based on your code, in which I have removed all unnecessary code and the series mappings accordingly. You can examine it and try to adapt  the code to your project. If you need further assistance I will ask that you provide us with a project that we can run, that demonstrates the issues that you have, so that we can test it and look for solutions.

    All the best,
    Petar Marchev
    the Telerik team
