Chart problem

2 posts, 0 answers
  1. Anikin Victor
    Anikin Victor avatar
    1 posts
    Member since:
    Apr 2010

    Posted 01 Nov 2012 Link to this post

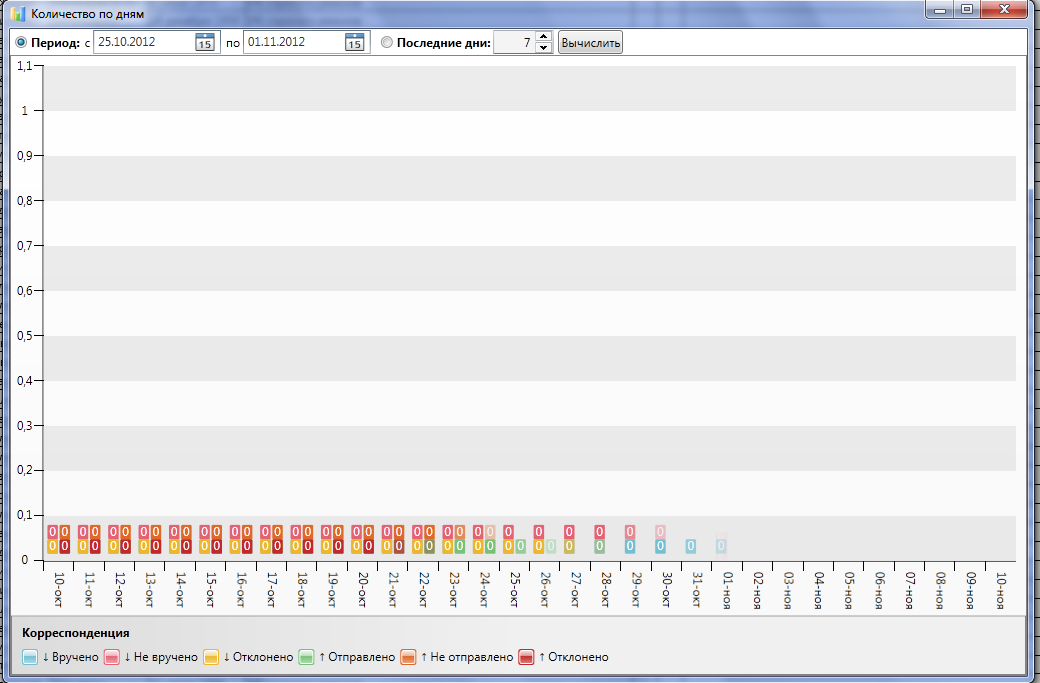

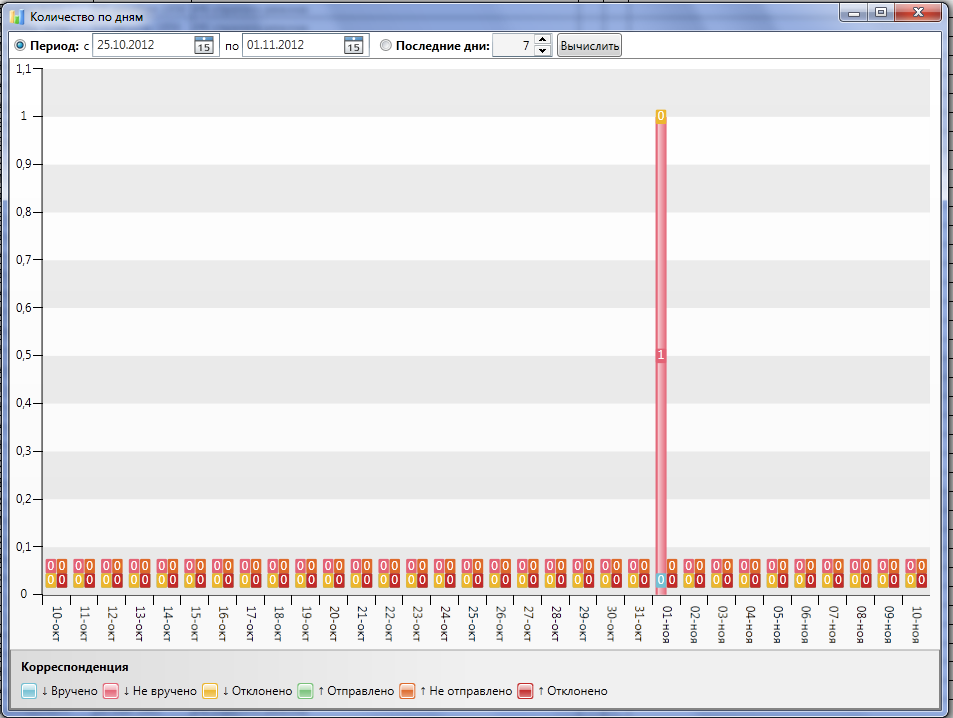

    I use the StackedBarSeries to display data.While drawing some of the columns are overwritten by other columns. Tell me how to fix this?
    Q2 2012 SP2

    <telerik:RadChart>
                        <telerik:RadChart.SeriesMappings>
                            <telerikCharting:SeriesMapping ItemsSource="{Binding Source={StaticResource lastDaysVM}, Path=Count.InboxServed}" LegendLabel="↓ Вручено">
                                <telerikCharting:SeriesMapping.SeriesDefinition>
                                    <telerikCharting:StackedBarSeriesDefinition StackGroupName="Inbox"></telerikCharting:StackedBarSeriesDefinition>
                                </telerikCharting:SeriesMapping.SeriesDefinition>
                                <telerikCharting:SeriesMapping.ItemMappings>
                                    <telerikCharting:ItemMapping FieldName="Date" DataPointMember="XCategory"></telerikCharting:ItemMapping>
                                    <telerikCharting:ItemMapping FieldName="Count" DataPointMember="YValue"></telerikCharting:ItemMapping>
                                </telerikCharting:SeriesMapping.ItemMappings>
                            </telerikCharting:SeriesMapping>

                            <telerikCharting:SeriesMapping ItemsSource="{Binding Source={StaticResource lastDaysVM}, Path=Count.InboxNotServed}" LegendLabel="↓ Не вручено">
                                <telerikCharting:SeriesMapping.SeriesDefinition>
                                    <telerikCharting:StackedBarSeriesDefinition StackGroupName="Inbox"></telerikCharting:StackedBarSeriesDefinition>
                                </telerikCharting:SeriesMapping.SeriesDefinition>
                                <telerikCharting:SeriesMapping.ItemMappings>
                                    <telerikCharting:ItemMapping FieldName="Date" DataPointMember="XCategory"></telerikCharting:ItemMapping>
                                    <telerikCharting:ItemMapping FieldName="Count" DataPointMember="YValue"></telerikCharting:ItemMapping>
                                </telerikCharting:SeriesMapping.ItemMappings>
                            </telerikCharting:SeriesMapping>

                            <telerikCharting:SeriesMapping ItemsSource="{Binding Source={StaticResource lastDaysVM}, Path=Count.InboxNotServedRejected}" LegendLabel="↓ Отклонено">
                                <telerikCharting:SeriesMapping.SeriesDefinition>
                                    <telerikCharting:StackedBarSeriesDefinition StackGroupName="Inbox"></telerikCharting:StackedBarSeriesDefinition>
                                </telerikCharting:SeriesMapping.SeriesDefinition>
                                <telerikCharting:SeriesMapping.ItemMappings>
                                    <telerikCharting:ItemMapping FieldName="Date" DataPointMember="XCategory"></telerikCharting:ItemMapping>
                                    <telerikCharting:ItemMapping FieldName="Count" DataPointMember="YValue"></telerikCharting:ItemMapping>
                                </telerikCharting:SeriesMapping.ItemMappings>
                            </telerikCharting:SeriesMapping>

                            <telerikCharting:SeriesMapping ItemsSource="{Binding Source={StaticResource lastDaysVM}, Path=Count.OutboxSend}" LegendLabel="↑ Отправлено">
                                <telerikCharting:SeriesMapping.SeriesDefinition>
                                    <telerikCharting:StackedBarSeriesDefinition StackGroupName="Outbox"></telerikCharting:StackedBarSeriesDefinition>
                                </telerikCharting:SeriesMapping.SeriesDefinition>
                                <telerikCharting:SeriesMapping.ItemMappings>
                                    <telerikCharting:ItemMapping FieldName="Date" DataPointMember="XCategory"></telerikCharting:ItemMapping>
                                    <telerikCharting:ItemMapping FieldName="Count" DataPointMember="YValue"></telerikCharting:ItemMapping>
                                </telerikCharting:SeriesMapping.ItemMappings>
                            </telerikCharting:SeriesMapping>

                            <telerikCharting:SeriesMapping ItemsSource="{Binding Source={StaticResource lastDaysVM}, Path=Count.OutboxNotSend}" LegendLabel="↑ Не отправлено">
                                <telerikCharting:SeriesMapping.SeriesDefinition>
                                    <telerikCharting:StackedBarSeriesDefinition StackGroupName="Outbox"></telerikCharting:StackedBarSeriesDefinition>
                                </telerikCharting:SeriesMapping.SeriesDefinition>
                                <telerikCharting:SeriesMapping.ItemMappings>
                                    <telerikCharting:ItemMapping FieldName="Date" DataPointMember="XCategory"></telerikCharting:ItemMapping>
                                    <telerikCharting:ItemMapping FieldName="Count" DataPointMember="YValue"></telerikCharting:ItemMapping>
                                </telerikCharting:SeriesMapping.ItemMappings>
                            </telerikCharting:SeriesMapping>

                            <telerikCharting:SeriesMapping ItemsSource="{Binding Source={StaticResource lastDaysVM}, Path=Count.OutboxNotSendRejected}" LegendLabel="↑ Отклонено">
                                <telerikCharting:SeriesMapping.SeriesDefinition>
                                    <telerikCharting:StackedBarSeriesDefinition StackGroupName="Outbox"></telerikCharting:StackedBarSeriesDefinition>
                                </telerikCharting:SeriesMapping.SeriesDefinition>
                                <telerikCharting:SeriesMapping.ItemMappings>
                                    <telerikCharting:ItemMapping FieldName="Date" DataPointMember="XCategory"></telerikCharting:ItemMapping>
                                    <telerikCharting:ItemMapping FieldName="Count" DataPointMember="YValue"></telerikCharting:ItemMapping>
                                </telerikCharting:SeriesMapping.ItemMappings>
                            </telerikCharting:SeriesMapping>
                        </telerik:RadChart.SeriesMappings>

                        <telerik:RadChart.DefaultView>
                            <telerikCharting:ChartDefaultView ChartLegendPosition="Bottom">
                                <telerikCharting:ChartDefaultView.ChartLegend>
                                    <telerikCharting:ChartLegend x:Name="chartLegend" Header="Корреспонденция"></telerikCharting:ChartLegend>
                                </telerikCharting:ChartDefaultView.ChartLegend>
                                <telerikCharting:ChartDefaultView.ChartArea>
                                    <telerikCharting:ChartArea LegendName="chartLegend">
                                        <telerik:ChartArea.AxisY>
                                            <telerikCharting:AxisY MinValue="0" MinorTickPointMultiplier="1"></telerikCharting:AxisY>
                                        </telerik:ChartArea.AxisY>
                                        <telerikCharting:ChartArea.AxisX>
                                            <telerikCharting:AxisX DefaultLabelFormat="dd-MMM" LabelRotationAngle="90"></telerikCharting:AxisX>
                                        </telerikCharting:ChartArea.AxisX>
                                    </telerikCharting:ChartArea>
                                </telerikCharting:ChartDefaultView.ChartArea>
                            </telerikCharting:ChartDefaultView>
                        </telerik:RadChart.DefaultView>
                    </telerik:RadChart>
  2. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 05 Nov 2012 Link to this post

    Hi Anikin,

    This is a common problem with stacked bar series - when there are some bars that are close together - there is no space for all labels. You can try to enable the smart labels and see how that goes:
    <telerik:ChartArea SmartLabelsEnabled="true" />

    Another solution is for you to show only one label per stack - instead of three labels, show only one - with the sum in it. Let us know if you need further assistance.

    All the best,
    Petar Marchev
    the Telerik team
