Chart Area Series with two lines

5 posts, 0 answers
  1. Wayne
    Wayne avatar
    4 posts
    Member since:
    Apr 2012

    Posted 02 Apr 2014 Link to this post

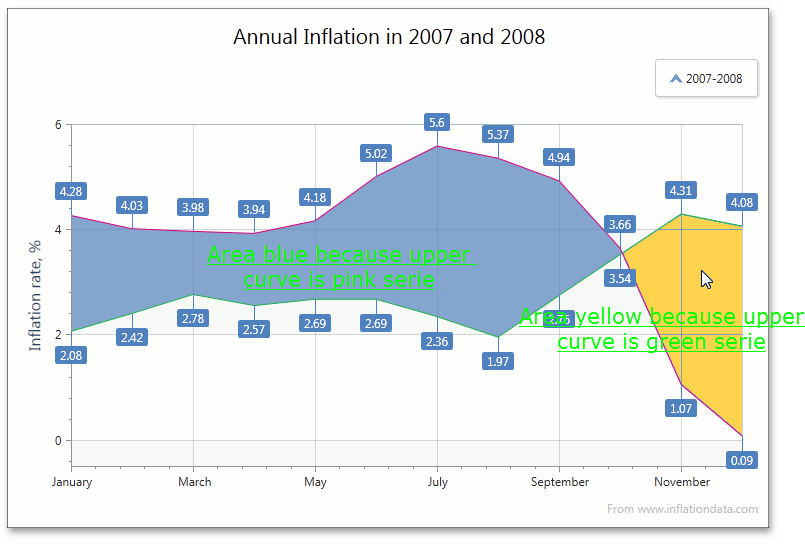

    I’ve never used the chart controls before and I’m attempting to create an area chart in WPF that allows the area (difference) between the 2 lines to be colored based on the line color that is greater. Is there a simple example I can see. I’ve included an example snap shot of what I’m trying to do.



      Thanks,

        Wayne

  2. Martin
    Admin
    Martin avatar
    1101 posts

    Posted 07 Apr 2014 Link to this post

    Hello Wayne,

    The described functionality is not supported by our charting components. However, if you give us more information about your scenario we may be able to work this around.

    Regards,
    Martin
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  3. UI for WPF is Visual Studio 2017 Ready
  4. aymeric
    aymeric avatar
    2 posts
    Member since:
    Oct 2014

    Posted 03 Oct 2014 in reply to Martin Link to this post

    Hello we have the same scenario which to draw the area between two times series (S1 & S2)
    when S1 > S2 the area uses color 1
    when S1 < S2 the area uses color 2.
    The two series could have missing values.
  5. aymeric
    aymeric avatar
    2 posts
    Member since:
    Oct 2014

    Posted 03 Oct 2014 in reply to aymeric Link to this post

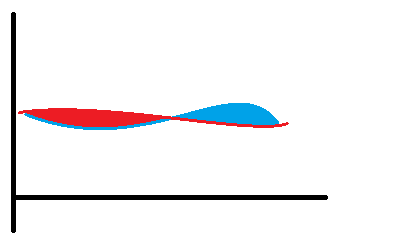

    here is an example
