Changing Line Colors

Thread is closed for posting
2 posts, 0 answers
  1. Steve
    Steve avatar
    9 posts
    Member since:
    Jun 2009

    Posted 23 Aug 2012 Link to this post

    I am decoratively creating a Spline chart and need to change the line colors:

    <telerik:RadChart
               ID="RadChartModelingZones"
               runat="server"
               DataSourceID="SqlDataSourceModelingZones"
               DefaultType="Spline"
               Skin="Gray"
               ChartTitle-TextBlock-Text="Merit">
               <Appearance Corners="Round, Round, Round, Round, 7">
                   <FillStyle FillType="ComplexGradient">
                       <FillSettings GradientMode="Horizontal">
                           <ComplexGradient>
                               <telerik:GradientElement Color="236, 236, 236" />
                               <telerik:GradientElement Color="248, 248, 248" Position="0.5" />
                               <telerik:GradientElement Color="236, 236, 236" Position="1" />
                           </ComplexGradient>
                       </FillSettings>
                   </FillStyle>
                   <Border Color="130, 130, 130" />
               </Appearance>
               <Series>
                   <telerik:ChartSeries Name="Series 1" Type="Spline">
                       <Appearance>
                           <FillStyle MainColor="164, 164, 164">
                           </FillStyle>
                           <TextAppearance TextProperties-Color="51, 51, 51">
                           </TextAppearance>
                       </Appearance>
                   </telerik:ChartSeries>
                   <telerik:ChartSeries Name="Series 2" Type="Spline">
                       <Appearance>
                           <FillStyle MainColor="108, 108, 108">
                           </FillStyle>
                           <TextAppearance TextProperties-Color="51, 51, 51">
                           </TextAppearance>
                       </Appearance>
                   </telerik:ChartSeries>
               </Series>
               <Legend>
                   <Appearance Dimensions-Margins="17.6%, 3%, 1px, 1px"
                               Dimensions-Paddings="2px, 8px, 6px, 3px" Position-AlignedPosition="TopRight">
                       <ItemMarkerAppearance Figure="Square">
                           <Border Width="0" />
                       </ItemMarkerAppearance>
                       <FillStyle MainColor="">
                       </FillStyle>
                       <Border Width="0" />
                   </Appearance>
               </Legend>
               <PlotArea>
                   <XAxis>
                       <Appearance Color="182, 182, 182" MajorTick-Color="216, 216, 216">
                           <MajorGridLines Color="216, 216, 216" PenStyle="Solid" />
                           <TextAppearance TextProperties-Color="51, 51, 51">
                           </TextAppearance>
                       </Appearance>
                       <AxisLabel>
                           <TextBlock>
                               <Appearance TextProperties-Color="51, 51, 51">
                               </Appearance>
                           </TextBlock>
                       </AxisLabel>
                   </XAxis>
                   <YAxis>
                       <Appearance Color="182, 182, 182" MajorTick-Color="216, 216, 216"
                                   MinorTick-Color="223, 223, 223">
                           <MajorGridLines Color="216, 216, 216" />
                           <MinorGridLines Color="223, 223, 223" />
                           <TextAppearance TextProperties-Color="51, 51, 51">
                           </TextAppearance>
                       </Appearance>
                       <AxisLabel>
                           <TextBlock>
                               <Appearance TextProperties-Color="51, 51, 51">
                               </Appearance>
                           </TextBlock>
                       </AxisLabel>
                   </YAxis>
                   <Appearance>
                       <FillStyle FillType="Solid" MainColor="White">
                       </FillStyle>
                       <Border Color="182, 182, 182" />
                   </Appearance>
               </PlotArea>
               <ChartTitle>
                   <Appearance>
                       <FillStyle MainColor="">
                       </FillStyle>
                   </Appearance>
                   <TextBlock>
                       <Appearance TextProperties-Color="102, 102, 102"
                                   TextProperties-Font="Arial, 18pt">
                       </Appearance>
                   </TextBlock>
               </ChartTitle>
           </telerik:RadChart>

    Here is the DataSource:

    <asp:SqlDataSource
        ID="SqlDataSourceModelingZones"
        runat="server"
        ConnectionString="<%$ ConnectionStrings:...%>"
        SelectCommand="GetMeritModelingZones"
        SelectCommandType="StoredProcedure">
        <SelectParameters>
            <asp:ControlParameter
                ControlID="RadSlider"
                DefaultValue="0.00"
                Name="Merit"
                PropertyName="SelectedValue"
                Type="Decimal" />
        </SelectParameters>
    </asp:SqlDataSource>

    I would prefer to keep all markup in aspx as opposed to changing the line colors in the code behind if that is possible.

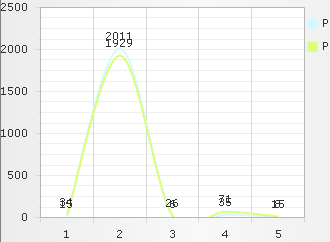

    The attached shows the chart w/ the default colors and cannot seem to change.

    Thanks,

    Steve

  2. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 28 Aug 2012 Link to this post

    Hi Steve,

    You can create a predefined palette of colors and set them to RadChart like this:

    <telerik:RadChart ID="RadChart1" runat="server" SeriesPalette="MyPalette">
                <CustomPalettes>
                    <telerik:Palette Name="MyPalette">
                        <Items>
                            <telerik:PaletteItem MainColor="Red" SecondColor="Green">
                            </telerik:PaletteItem>
                            <telerik:PaletteItem MainColor="Orange" SecondColor="Blue">
                            </telerik:PaletteItem>
                            .......
                        </Items>
                    </telerik:Palette>
                </CustomPalettes>

    I hope this helps.

    Greetings,
    Evgenia
    the Telerik team
