Change the look of ArrowGaugeIndicator

5 posts, 0 answers
  1. Ulrich Reinhardt
    Ulrich Reinhardt avatar
    5 posts
    Member since:
    Apr 2010

    Posted 01 Sep 2015 Link to this post

    Hi,

     is there any possibility to change the look of the Arrow Gauge Indicator. I want to replace the arrow form with a different one. The only way that i have already figured out is too change the ImageBrush with with a semi-transparent Image.

    <dataVisualization:ArrowGaugeIndicator.Brush>
                            <ImageBrush Stretch="Fill" ImageSource="[..].png"/>
                        </dataVisualization:ArrowGaugeIndicator.Brush>

    But it does not look very good.

    Thank you :)

  2. Pavel R. Pavlov
    Admin
    Pavel R. Pavlov avatar
    1182 posts

    Posted 04 Sep 2015 Link to this post

    Hi Ulrich,

    There are some limited ways to customize that arrow. Could you please be more specific about how exactly you want to customize the arrow? Please provide us with image of the final look of the arrow and we will investigate for the available options.

    Regards,
    Pavel R. Pavlov
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. Ulrich Reinhardt
    Ulrich Reinhardt avatar
    5 posts
    Member since:
    Apr 2010

    Posted 11 Sep 2015 in reply to Pavel R. Pavlov Link to this post

    Hi Pavel,

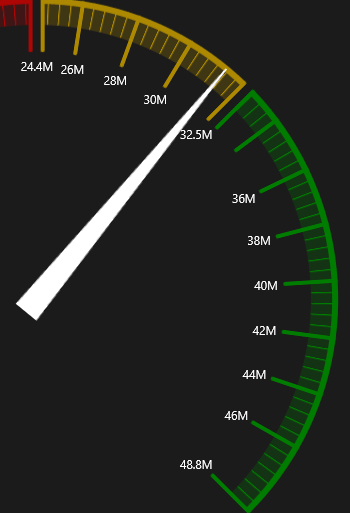

    sorry that I am answering only now. You can see the desired final look of the arrow in the attached picture. Is it possible to get the arrow as a vector/svg because the arrow have to look "good" when the user changes the size of the window.

    Thank you :)

    Regards,

    Ulrich

  4. Ulrich Reinhardt
    Ulrich Reinhardt avatar
    5 posts
    Member since:
    Apr 2010

    Posted 11 Sep 2015 in reply to Pavel R. Pavlov Link to this post

    Hi Pavel,
    sorry that I am answering only now. You can see the desired final look of the arrow in the attached picture. Is it possible to get the arrow as a vector/svg because the arrow have to look "good" when the user changes the size of the window.
    Thank you :)
    Regards,
    Ulrich
  5. Rosy Topchiyska
    Admin
    Rosy Topchiyska avatar
    550 posts

    Posted 16 Sep 2015 Link to this post

    Hi Ulrich,

    You can make your own indicator that inherits from the NeedleGaugeIndicator class and uses a path with the desired form in its control template. You can take a look at the sample project that I have prepared for you.

    Please, let us know if you have further questions.

    Regards,
    Rosy Topchiyska
