Change CrossTab Report Group Visibility Independently

2 posts, 0 answers
  1. Aaron
    Aaron avatar
    14 posts
    Member since:
    Jan 2012

    Posted 06 Feb 2015 Link to this post

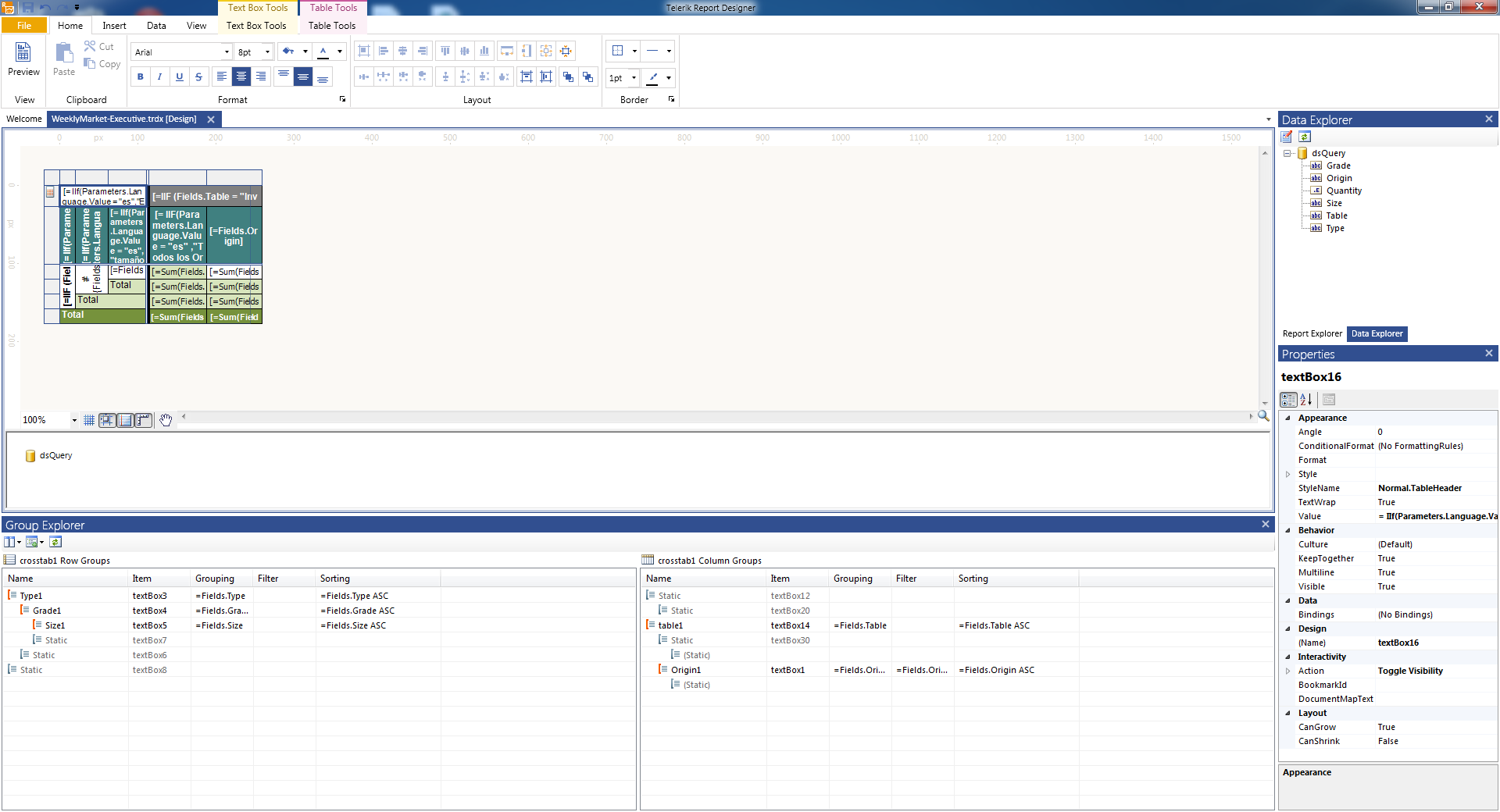

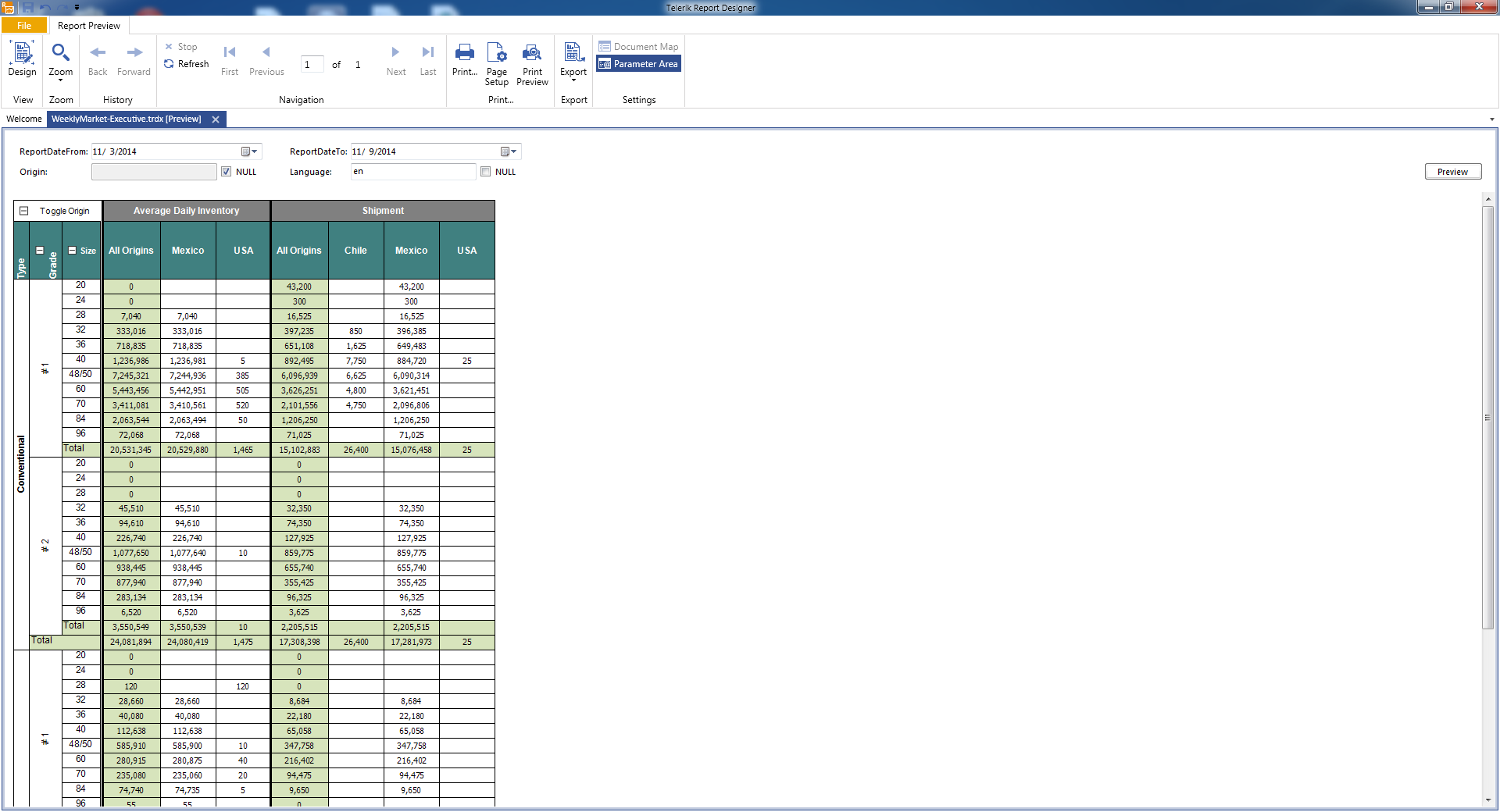

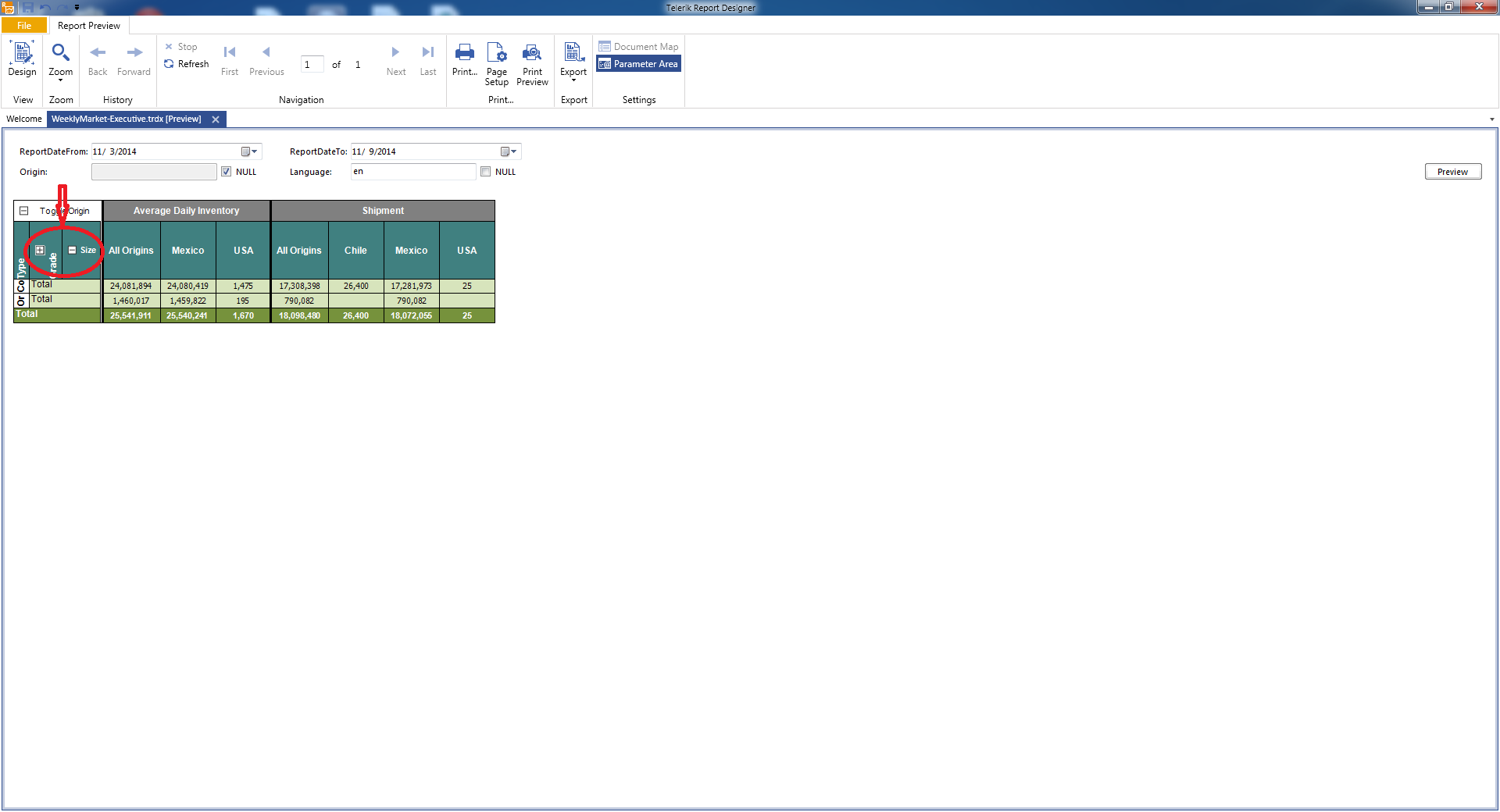

    I have a Cross Tab Report with Three Fields assigned to its Row Groups. I also Set Interactivity action to toggle group's visibility on runtime. However setting visbility of the first Row Group to off would also collapse all the subsequent row groups. Technically logical, but I want to know if there is a way to do it so the row groups can be toggled on/off with the remainder of the groups show aggregate data.Look at attached screenshots.
  2. Stef
    Stef avatar
    2914 posts

    Posted 11 Feb 2015 Link to this post

    Hi Aaron,

    Please check the actions settings of the local ProductSales demo, installed by default under C:\Program Files (x86)\Telerik\Reporting <VERSION>\Examples\CSharp|VB\ReportLibrary\Crosstab. Depending on the item's structure and actions' targets you can leave static groups displayed.

    Based on your screenshots the actions are set in the column headers of the Crosstab itema nd thus remain visible when the row groups are collapsed. Moving the actions to the corresponding grouping cells in the row will allow you to collapse inner groups individually.

    In order to provide you more accurate suggestions, please open a support ticket and send us the report's code files, test data and details about the expected result.
