Change Backcolor of GraphicalView Summary Item

2 posts, 0 answers
  1. John
    John avatar
    21 posts
    Member since:
    Sep 2013

    Posted 21 Jan 2015 Link to this post

    Hi,
    How can the GraphicalView Summary Item backcolor be changed?  I tried handling the GraphicalViewItemFormatting event and can change Task items using
    e.ItemElement.TaskElement.BackColor but this had no effect on Summary items and I could not a reference to the SummaryItem in e or e.item.
    Thanks,
    John
  2. Hristo Merdjanov
    Admin
    Hristo Merdjanov avatar
    711 posts

    Posted 24 Jan 2015 Link to this post

    Hi John,

    Thank you for writing.

    As you have tried yourself you would need to subscribe to GraphicalViewItemFormatting event.
    I have prepared an example in which I am setting color of the GanttViewSummaryItemElement as well as its GanttGraphicalViewBaseTaskElement.
    Please see my code snippet below:
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();

            this.radGanttView1.GanttViewElement.GraphicalViewElement.TimelineStart = new DateTime(2010, 10, 9);
            this.radGanttView1.GanttViewElement.GraphicalViewElement.TimelineEnd = new DateTime(2010, 10, 30);
            this.FillGanttViewWithData();
            this.radGanttView1.GraphicalViewItemFormatting += radGanttView1_GraphicalViewItemFormatting;
        }

        private void radGanttView1_GraphicalViewItemFormatting(object sender, GanttViewGraphicalViewItemFormattingEventArgs e)
        {
            GanttViewSummaryItemElement summaryItem = e.ItemElement as GanttViewSummaryItemElement;
            if (summaryItem != null)
            {
                //set color of the GanttViewSummaryItemElement
                summaryItem.BackColor = Color.Green;

                GanttGraphicalViewBaseTaskElement taskElement = summaryItem.TaskElement;
                //set color of all the summary elements in the GnttView
                foreach (var el in taskElement.Children)
                {
                    if (el is GanttViewSummaryLeftElement)
                    {
                        ((GanttViewSummaryLeftElement)el).BackColor = Color.Cyan;
                    }
                    else if (el is GanttViewSummaryRightElement)
                    {
                        ((GanttViewSummaryRightElement)el).BackColor = Color.Cyan;
                    }
                    else if (el is GanttViewSummaryMiddleElement)
                    {
                        ((GanttViewSummaryMiddleElement)el).BackColor = Color.Cyan;
                    }
                    else if (el is SummaryProgressIndicatorElement)
                    {
                        ((SummaryProgressIndicatorElement)el).BackColor = Color.Yellow;
                    }
                }
            }
        }

        private void FillGanttViewWithData()
            {
                //setup data items
                GanttViewDataItem item1 = new GanttViewDataItem();
                item1.Start = new DateTime(2010, 10, 10);
                item1.End = new DateTime(2010, 10, 15);
                item1.Progress = 30m;
                item1.Title = "Summary task.1. title";

                GanttViewDataItem subitem11 = new GanttViewDataItem();
                subitem11.Start = new DateTime(2010, 10, 10);
                subitem11.End = new DateTime(2010, 10, 12);
                subitem11.Progress = 10m;
                subitem11.Title = "Sub-task.1.1 title";

                GanttViewDataItem subitem12 = new GanttViewDataItem();
                subitem12.Start = new DateTime(2010, 10, 12);
                subitem12.End = new DateTime(2010, 10, 15);
                subitem12.Progress = 20m;
                subitem12.Title = "Sub-task.1.2 title";

                //add subitems
                item1.Items.Add(subitem11);
                item1.Items.Add(subitem12);

                this.radGanttView1.Items.Add(item1);

                GanttViewDataItem item2 = new GanttViewDataItem();
                item2.Start = new DateTime(2010, 10, 12);
                item2.End = new DateTime(2010, 10, 18);
                item2.Progress = 40m;
                item2.Title = "Summary task.2. title";

                GanttViewDataItem subitem21 = new GanttViewDataItem();
                subitem21.Start = new DateTime(2010, 10, 12);
                subitem21.End = new DateTime(2010, 10, 13);
                subitem21.Progress = 10m;
                subitem21.Title = "Sub-task.2.1 title";

                GanttViewDataItem subitem22 = new GanttViewDataItem();
                subitem22.Start = new DateTime(2010, 10, 13);
                subitem22.End = new DateTime(2010, 10, 18);
                subitem22.Progress = 30m;
                subitem22.Title = "Sub-task.2.2 title";

                GanttViewDataItem subitem23 = new GanttViewDataItem();
                subitem23.Start = new DateTime(2010, 10, 18);
                subitem23.End = new DateTime(2010, 10, 18);
                subitem23.Title = "Sub-task.2.3 title";

                //add subitems
                item2.Items.Add(subitem21);
                item2.Items.Add(subitem22);
                item2.Items.Add(subitem23);

                this.radGanttView1.Items.Add(item2);

                //add links between items
                GanttViewLinkDataItem link1 = new GanttViewLinkDataItem();
                link1.StartItem = subitem11;
                link1.EndItem = subitem12;
                link1.LinkType = TasksLinkType.FinishToStart;
                this.radGanttView1.Links.Add(link1);

                GanttViewLinkDataItem link2 = new GanttViewLinkDataItem();
                link2.StartItem = subitem21;
                link2.EndItem = subitem22;
                link2.LinkType = TasksLinkType.StartToStart;
                this.radGanttView1.Links.Add(link2);

                GanttViewLinkDataItem link3 = new GanttViewLinkDataItem();
                link3.StartItem = subitem22;
                link3.EndItem = subitem23;
                link3.LinkType = TasksLinkType.FinishToStart;
                this.radGanttView1.Links.Add(link3);

                GanttViewTextViewColumn titleColumn = new GanttViewTextViewColumn("Title");
                GanttViewTextViewColumn startColumn = new GanttViewTextViewColumn("Start");
                GanttViewTextViewColumn endColumn = new GanttViewTextViewColumn("End");

                this.radGanttView1.GanttViewElement.Columns.Add(titleColumn);
                this.radGanttView1.GanttViewElement.Columns.Add(startColumn);
                this.radGanttView1.GanttViewElement.Columns.Add(endColumn);
            }
    }

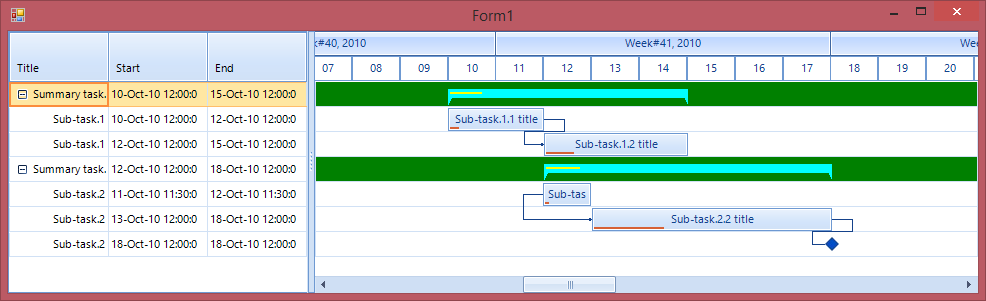

    I am also sending you a screenshot showing how the RadGanttView looks on my side.

    I hope this helps. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo
    Telerik
