Category Show after hiding all properties at runtime.

3 posts, 1 answers
  1. Chuck
    Chuck avatar
    9 posts
    Member since:
    Oct 2012

    Posted 16 Jul 2015 Link to this post

    I am using

    radPropertyGrid1.Items["Text"].Visible = variable;
    to hide or show properties at run time.
    The only negative side effect I'm seeing is that the Category doesn't disappear.
    Is there a way to hide the category as well?

    I've attached a picture of it visible, and of it hidden.
    The category is Motion System Locations.

  2. Answer
    Dess
    Admin
    Dess avatar
    1609 posts

    Posted 17 Jul 2015 Link to this post

    Hello Chuck,

    Thank you for writing.

    When you hide all PropertyGridItems for a certain group you should hide the PropertyGridGroupItem as well:
    public Form1()
    {
        InitializeComponent();

        this.radPropertyGrid1.ToolbarVisible = true;

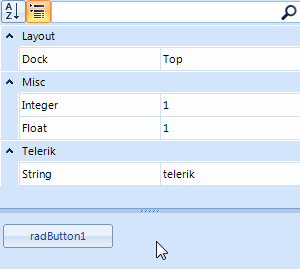

        PropertyStoreItem intItem = new PropertyStoreItem(typeof(int), "Integer", 1);
        PropertyStoreItem floatItem = new PropertyStoreItem(typeof(float), "Float", 1f, "Property storing a floating point value.");
        PropertyStoreItem stringItem = new PropertyStoreItem(typeof(string), "String", "telerik", "Property storing a string value", "Telerik");
        PropertyStoreItem dockItem = new PropertyStoreItem(typeof(DockStyle), "Dock", DockStyle.Top, "Property containing DockStyle value", "Layout", false);

        RadPropertyStore store = new RadPropertyStore();
        store.Add(intItem);
        store.Add(floatItem);
        store.Add(stringItem);
        store.Add(dockItem);

        this.radPropertyGrid1.SelectedObject = store;
    }

    private void radButton1_Click(object sender, EventArgs e)
    {
        radPropertyGrid1.Items["Integer"].Visible = false;
        radPropertyGrid1.Items["Float"].Visible = false;

        foreach (PropertyGridGroupItem groupItem in this.radPropertyGrid1.PropertyGridElement.PropertyTableElement.Groups)
        {
            bool areAllItemsHidden = true;
            foreach (PropertyGridItem item in groupItem.GridItems)
            {
                if (item.Visible)
                {
                    areAllItemsHidden = false;
                    break;
                }
            }
            if (areAllItemsHidden)
            {
                groupItem.Visible = false;
            }
            else
            {
                groupItem.Visible = true;
            }
        }
    }

    I hope this information helps. Should you have further questions, I would be glad to help.

    Regards,
    Dess
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. UI for WinForms is Visual Studio 2017 Ready
  4. Chuck
    Chuck avatar
    9 posts
    Member since:
    Oct 2012

    Posted 17 Jul 2015 in reply to Dess Link to this post

    Thanks, that was exactly what I was looking for.
