Capturing the DataPoint which triggered a mouse event in a Stacked BarChart

2 posts, 0 answers
  1. Tanja
    Tanja avatar
    2 posts
    Member since:
    Mar 2013

    Posted 14 Nov 2013 Link to this post

    Hi,

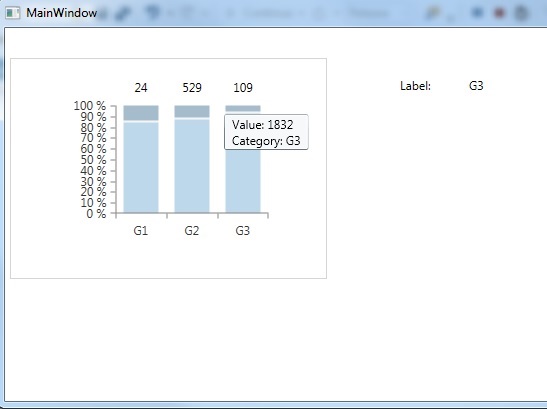

    We are trying to display data for a particular DataPoint which triggered a mouse event in a label but we are not having too much luck with it as we keep getting the entire BarSeries, not the actual DataPoint, passed into the event.

    Here is a recap of what we are trying to achieve:

    - a Stacked BarChart has two bar series ("Events" and "NonEvents" in the example) which are populated through a binding.
    - there are three categories displayed: "G1", "G2" and "G3".
    - on mouse over event of "G3"  bar we would like to display text "G3" on a label which is not a part of the chart.

    Any ideas on this?

    Best regards,
    Tanja Risovic


    Code:

      public partial class MainWindow : Window
        {
            public MainWindow()
            {
                InitializeComponent();

                var dataModel = new List<ViewDataModel>();

                var dataModel1 = new ViewDataModel();
                dataModel1.Events = 151;
                dataModel1.NonEvents = 24;
                dataModel1.GroupID = "1";
                dataModel1.GroupLabel = "G1";


                dataModel.Add(dataModel1);


                var dataModel2 = new ViewDataModel();
                dataModel2.Events = 4132;
                dataModel2.NonEvents = 529;
                dataModel2.GroupID = "2";
                dataModel2.GroupLabel = "G2";


                dataModel.Add(dataModel2);

                var dataModel3 = new ViewDataModel();
                dataModel3.Events = 1832;
                dataModel3.NonEvents = 109;
                dataModel3.GroupID = "3";
                dataModel3.GroupLabel = "G3";


                dataModel.Add(dataModel3);

                BarChartPercentage.DataContext = dataModel;

                        }

            private void BarSeries_MouseEnter(object sender, MouseEventArgs e)
            {

                this.label.Content = ???; //We would like to show the GroupLabel of the DataPoint which triggered the mouse event, for example "G3"

            }

        }
  2. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 19 Nov 2013 Link to this post

    Hi Tanja,

    There are a few options you have. One is to set a PointTemplate for the bars of the series and set an element in the template with a MouseEnter handler. Another option is to use the series' MouseEnter and find the bar underneath the mouse by hit testing:
    var result = VisualTreeHelper.HitTest((Visual)sender, e.GetPosition(null));
    var bar = result.VisualHit as Border;
    var dp = bar.DataContext as CategoricalDataPoint;

    I hope this helps.

    Regards,
    Petar Marchev
    Telerik
