Can't load RadDocking after saving the layout to IsolatedStorage

2 posts, 0 answers
  1. Trish
    Trish avatar
    6 posts
    Member since:
    Oct 2011

    Posted 15 Dec 2011 Link to this post

    Using the DockingCustomPropertyProvider I save the docking settings.  When I try to load them back up, (after I have unpinned a panel) I get the following error:  The given key was not present in the dictionary.


    using System;
    using System.Collections.Generic;
    using System.IO;
    using System.Linq;
    using System.Text;
    using Telerik.Windows.Controls;
    using Telerik.Windows.Persistence.Services;

    namespace BasicDockingPersistenceExample
    {
        public class DockingCustomPropertyProvider : ICustomPropertyProvider
        {
            public CustomPropertyInfo[] GetCustomProperties()
            {
                // Create two custom properties to serialize the Layout of the RadDocking and the Content of the RadPanes
                return new CustomPropertyInfo[]
                           {
                               new CustomPropertyInfo("Layout", typeof (string)),
                               new CustomPropertyInfo("Content", typeof (List<PaneProxy>)) {AllowCreateInstance = false, TreatAsUI = false},
                           };
            }

            public void InitializeObject(object context)
            {
            }

            public object InitializeValue(CustomPropertyInfo customPropertyInfo, object context)
            {
                if (customPropertyInfo.Name == "Content")
                {
                    // See remarks in ProvideValue method:
                    // provide the values on which the saved properties will be restored upon
                    RadDocking docking = context as RadDocking;
                    List<PaneProxy> proxies = new List<PaneProxy>();
                    foreach (RadPane pane in this.GetOrderedPanes(docking).ToArray())
                    {
                        proxies.Add(new PaneProxy() { Content = pane.Content });
                    }
                    return proxies;
                }
                return null;
            }

            public object ProvideValue(CustomPropertyInfo customPropertyInfo, object context)
            {
                RadDocking docking = context as RadDocking;
                if (customPropertyInfo.Name == "Layout")
                {
                    // let the RadDocking save the layout of the Panes:
                    return this.SaveLayoutAsString(docking);
                }
                else if (customPropertyInfo.Name == "Content")
                {
                    // create proxies for all of the Panes and save their content
                    IEnumerable<RadPane> panes = this.GetOrderedPanes(docking);
                    List<PaneProxy> proxies = new List<PaneProxy>();
                    foreach (RadPane pane in panes)
                    {
                        proxies.Add(new PaneProxy() { Content = pane.Content });
                    }
                    return proxies;
                }
                return null;
            }

            public void RestoreValue(CustomPropertyInfo customPropertyInfo, object context, object value)
            {
                if (customPropertyInfo.Name == "Layout")
                {
                    // let the RadDocking load the layout of the RadPanes
                    this.LoadLayoutFromString(value.ToString(), context as RadDocking);
                }
                else if (customPropertyInfo.Name == "Content")
                {
                    // the PersistenceManager does not re-create UI elements - in this case the Content of the RadPane.
                    // So, instead of providing a value on which the saved properties will be applied,
                    // we will use the InitializeValue method.
                }
            }

            private string SaveLayoutAsString(RadDocking instance)
            {
                MemoryStream stream = new MemoryStream();
                instance.SaveLayout(stream);

                stream.Seek(0, SeekOrigin.Begin);

                StreamReader reader = new StreamReader(stream);
                return reader.ReadToEnd();
            }

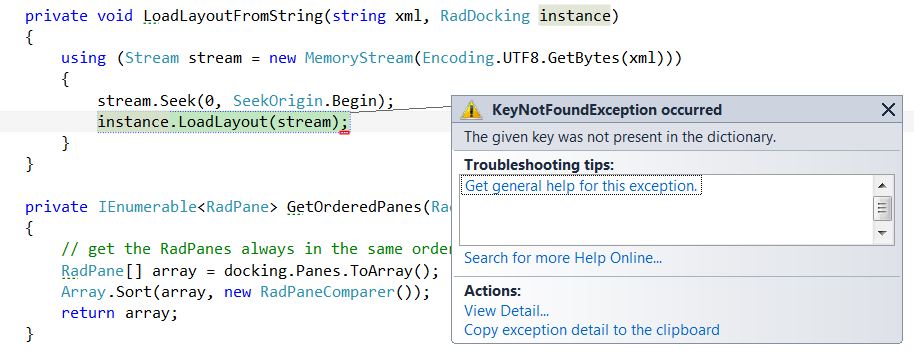

            private void LoadLayoutFromString(string xml, RadDocking instance)
            {
                using (Stream stream = new MemoryStream(Encoding.UTF8.GetBytes(xml)))
                {
                    stream.Seek(0, SeekOrigin.Begin);
                    instance.LoadLayout(stream);
                }
            }

            private IEnumerable<RadPane> GetOrderedPanes(RadDocking docking)
            {
                // get the RadPanes always in the same order:
                RadPane[] array = docking.Panes.ToArray();
                Array.Sort(array, new RadPaneComparer());
                return array;
            }
        }

        public class RadPaneComparer : IComparer<RadPane>
        {
            int IComparer<RadPane>.Compare(RadPane x, RadPane y)
            {
                // compare RadPanes by their serialization tag:
                string xSerializationTag = RadDocking.GetSerializationTag(x);
                string ySerializationTag = RadDocking.GetSerializationTag(y);

                return xSerializationTag.CompareTo(ySerializationTag);
            }
        }

        public class PaneProxy
        {
            public object Content { get; set; }
        }
    }

    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Linq;
    using System.Text;

    namespace BasicDockingPersistenceExample
    {
        public class MainWindowViewModel : INotifyPropertyChanged
        {
            public MainWindowViewModel()
            {

            }

            #region DockPanel pinning properties

            private bool? _pane2PanelIsPinned = false;

            public bool? Pane2PanelIsPinned
            {
                get { return _pane2PanelIsPinned; }
                set
                {
                    _pane2PanelIsPinned = value;
                    FirePropertyChanged("Pane2PanelIsPinned");
                }
            }

            private bool? _pane1PanelIsPinned = false;

            public bool? Pane1PanelIsPinned
            {
                get { return _pane1PanelIsPinned; }
                set
                {
                    _pane1PanelIsPinned = value;
                    FirePropertyChanged("Pane1PanelIsPinned");
                }
            }

            private bool? _pane5PanelIsPinned = false;

            public bool? Pane5PanelIsPinned
            {
                get { return _pane5PanelIsPinned; }
                set
                {
                    _pane5PanelIsPinned = value;
                    FirePropertyChanged("Pane5PanelIsPinned");
                }
            }

            private bool? _pane3PanelIsPinned = true;

            public bool? Pane3PanelIsPinned
            {
                get { return _pane3PanelIsPinned; }
                set
                {
                    _pane3PanelIsPinned = value;
                    FirePropertyChanged("Pane3PanelIsPinned");
                }
            }

            private bool? _pane4PanelIsPinned = true;

            public bool? Pane4PanelIsPinned
            {
                get { return _pane4PanelIsPinned; }
                set
                {
                    _pane4PanelIsPinned = value;
                    FirePropertyChanged("Pane4PanelIsPinned");
                }
            }

            #endregion


            public event PropertyChangedEventHandler PropertyChanged;

            protected void FirePropertyChanged(string property)
            {
                //Should only be called by ViewModel base class.  Derived classes should use lambda/LINQ syntax to simplify refactoring
                if (PropertyChanged != null)
                    PropertyChanged(this, new PropertyChangedEventArgs(property));
            }

        }
    }

    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Text;
    using System.Windows;
    using System.Windows.Controls;
    using System.Windows.Data;
    using System.Windows.Documents;
    using System.Windows.Input;
    using System.Windows.Media;
    using System.Windows.Media.Imaging;
    using System.Windows.Navigation;
    using System.Windows.Shapes;
    using Telerik.Windows.Controls;
    using Telerik.Windows.Persistence.Services;
    using Telerik.Windows.Persistence.Storage;

    namespace BasicDockingPersistenceExample
    {
        /// <summary>
        /// Interaction logic for MainWindow.xaml
        /// </summary>
        public partial class MainWindow : Window
        {
            public MainWindow()
            {

                ServiceProvider.RegisterPersistenceProvider<ICustomPropertyProvider>(typeof(RadDocking), new DockingCustomPropertyProvider());

                this.DataContext = new MainWindowViewModel();

                InitializeComponent();
                Dispatcher.ShutdownStarted += new EventHandler(DispatcherShutdownStarted);


            }

            private void DispatcherShutdownStarted(object sender, EventArgs e)
            {
                Dispatcher.ShutdownStarted -= new EventHandler(DispatcherShutdownStarted);
                SaveLayout();
            }


            private void SaveLayout()
            {
                var storage = new IsolatedStorageProvider();
                storage.SaveToStorage();

            }

            private void LoadLayout()
            {
                var storage = new IsolatedStorageProvider();
                storage.LoadFromStorage();
            }

            private void BuildDockingLoaded(object sender, RoutedEventArgs e)
            {
                LoadLayout();
            }


        }
    }

    <Window x:Class="BasicDockingPersistenceExample.MainWindow"
                    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
                    Title="MainWindow" Height="588" Width="876">
        <telerik:RadDocking x:Name="BuildDocking" HorizontalAlignment="Stretch" VerticalAlignment="Stretch"
                            Padding="2"  HasDocumentHost="False"
                            Loaded="BuildDockingLoaded"
                            telerik:PersistenceManager.StorageId="BuildDocking">
            <telerik:RadSplitContainer Orientation="Horizontal" InitialPosition="DockedBottom">
                <telerik:RadPaneGroup >
                    <telerik:RadPane x:Name="Pane1Panel" Header="Pane 1"
                                     telerik:RadDocking.SerializationTag="Pane1Panel"
                                     IsPinned="{Binding Path=Pane1PanelIsPinned, Mode=TwoWay}" CanUserClose="False" CanDockInDocumentHost="False">

                    </telerik:RadPane>
                </telerik:RadPaneGroup>
            </telerik:RadSplitContainer>
            <telerik:RadSplitContainer Orientation="Horizontal" InitialPosition="DockedLeft" >
                <telerik:RadPaneGroup  telerik:ProportionalStackPanel.RelativeSize="200, 300">
                    <telerik:RadPane x:Name="Pane2Panel" Header="Pane 2"
                                     telerik:RadDocking.SerializationTag="Pane2Panel"
                                     IsPinned="{Binding Path=Pane2PanelIsPinned, Mode=TwoWay}" CanUserClose="False" CanDockInDocumentHost="False">
                    </telerik:RadPane>
                </telerik:RadPaneGroup>
            </telerik:RadSplitContainer>
            <telerik:RadSplitContainer Orientation="Horizontal" InitialPosition="DockedRight" MinWidth="300">
                <telerik:RadPaneGroup >
                    <telerik:RadPane Header="Pane 3" x:Name="Pane3Panel"
                                     telerik:RadDocking.SerializationTag="Pane3Panel"
                                     IsPinned="{Binding Path=Pane3PanelIsPinned, Mode=TwoWay}" CanUserClose="False" CanDockInDocumentHost="False" >

                    </telerik:RadPane>
                </telerik:RadPaneGroup>
            </telerik:RadSplitContainer>
            <telerik:RadSplitContainer Orientation="Vertical" InitialPosition="DockedTop"  MinHeight="100" >
                <telerik:RadPaneGroup >
                    <telerik:RadPane Header="Pane 4" x:Name="Pane4Panel"
                                     telerik:RadDocking.SerializationTag="Pane4Panel"
                                     IsPinned="{Binding Path=Pane4PanelIsPinned, Mode=TwoWay}"  CanUserClose="False" CanDockInDocumentHost="False" >
                    </telerik:RadPane>
                </telerik:RadPaneGroup>
            </telerik:RadSplitContainer>
            <telerik:RadSplitContainer Orientation="Vertical" InitialPosition="DockedTop"  MinHeight="100" >
                <telerik:RadPaneGroup >
                    <telerik:RadPane Header="Pane 5" x:Name="Pane5Panel"
                                     telerik:RadDocking.SerializationTag="Pane5Panel"
                                     IsPinned="{Binding Path=Pane5PanelIsPinned, Mode=TwoWay}" CanUserClose="False" CanDockInDocumentHost="False" >
                    </telerik:RadPane>
                </telerik:RadPaneGroup>
            </telerik:RadSplitContainer>

        </telerik:RadDocking>

    </Window>
  2. Trish
    Trish avatar
    6 posts
    Member since:
    Oct 2011

    Posted 20 Dec 2011 Link to this post

    After putting in a support ticket this problem will be fixed in 2011 Q3 SP1.
