Bubble Charts : X Axis Line Overlaying on the Bubble Charts

Thread is closed for posting
4 posts, 0 answers
  1. Karthik
    Karthik avatar
    1 posts
    Member since:
    Jun 2012

    Posted 13 Jun 2012 Link to this post

    Hi,

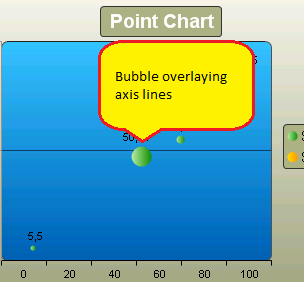

    I have generated rad bubble chart.But the X-Axis line is overlaying the bubbles. In the telerik site, I have found this link . Please also check in the attachment. May I know from which we can obtain the bubble at the top over Axis lines...

    Thanks & Regards,
    Karthik
  2. Peshito
    Admin
    Peshito avatar
    497 posts

    Posted 18 Jun 2012 Link to this post

    Hi Karthik,

    You can control your bubbles size and location by using the XValue, XValue2, YValue and YValue2 properties. Please find attached a sample project demonstrating their use.

    You can also try specifying the scale of your axis manually.

    Hope this helps.

    Greetings,
    Peshito
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Karthikeyan
    Karthikeyan avatar
    5 posts
    Member since:
    Jun 2012

    Posted 18 Jun 2012 Link to this post

    Hi Peshito ,

    Currently, I am able to plot the bubble prpperly. For some which are plotted ON the axis for eg., (5,0), (0,5), I am getting this problem. The problem is - the axis line is overlapping over the bubble. May I know if its possible to place the bubble ON TOP of the axis line ?

    Thanks & Regards,
    Karthik
  5. Peshito
    Admin
    Peshito avatar
    497 posts

    Posted 21 Jun 2012 Link to this post

    Hi Karthik,

    Yes you can do so by specifying a manual YAxis range and set a negative MinValue like this:
    <PlotArea>
        <YAxis AutoScale="False" MaxValue="25" MinValue="-5" Step="5">
        </YAxis>
    </PlotArea>
    This way, your bubble won't be clipped and it will be on top of the XAxis.

    Hope this helps.
