Binding two grids

3 posts, 0 answers
  1. KawaUser
    KawaUser avatar
    57 posts
    Member since:
    Oct 2010

    Posted 14 Dec 2011 Link to this post

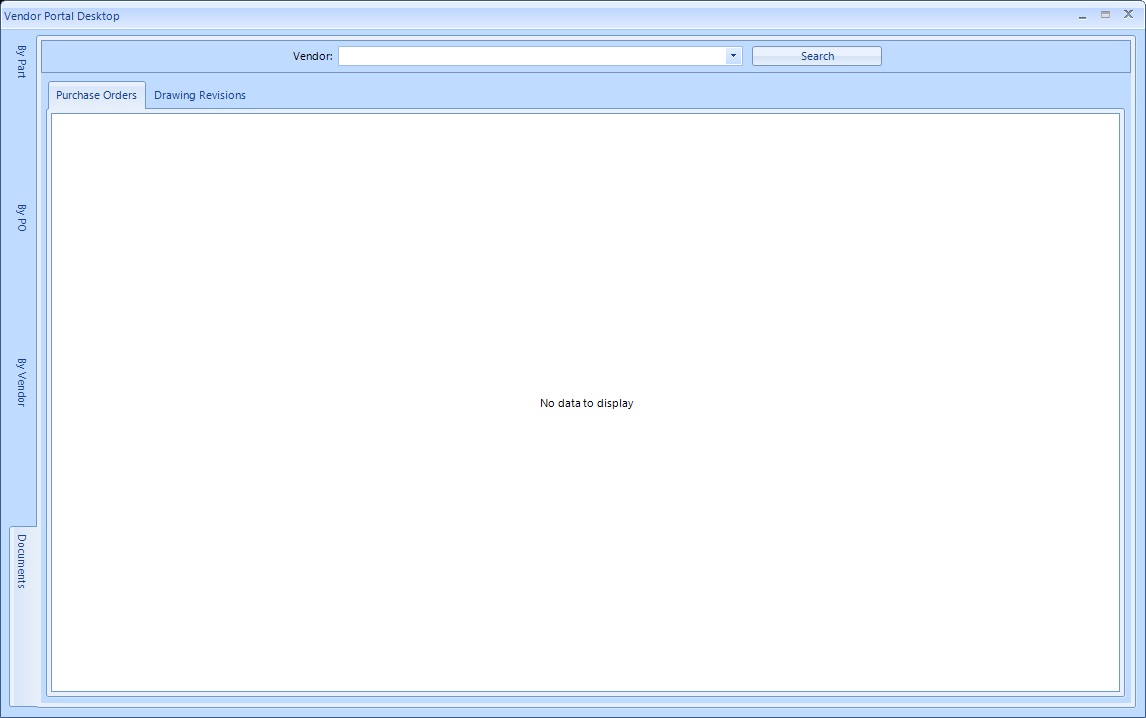

    I have 2 grids that I bind to when selecting a vendor from the drop down and click the search button(griderror.jpg shows before I click search). Before they get their data I add a command column to each grid, works with no problems. When I click the search button they both get their data with no problems and everything looks good(GridError2.jpg shows that the data properly populated). When I click the button in the command column of the first grid it does exactly what it is suppose to. If I click the command column in the 2nd grid it errors out with the original - Object reference is not set to an instance of an object. If I do not load the first grid, but just the 2nd grid it does not error out.

    Private Sub rgvDocumentsPO_CommandCellClick(sender As Object, e As System.EventArgs) Handles rgvDocumentsPO.CommandCellClick

        Dim VendorID As Integer = ddlDocumentsVendor.SelectedValue

        Dim documentid As Integer = rgvDocumentsPO.CurrentRow.Cells("Document ID").Value

        If DataLayer.UnconfirmDocument(documentid) = True Then

            LoadDocuments(VendorID)

        Else

            RadMessageBox.Show("You can not unconfirm this document.")

        End If

    End Sub

    Private Sub rgvDocumentsDrawings_CommandCellClick(sender As Object, e As System.EventArgs) Handles rgvDocumentsDrawings.CommandCellClick

        Dim VendorID As Integer = ddlDocumentsVendor.SelectedValue

        'It errors out on this next line, but not the same line in the above Sub
        Dim documentid As Integer = rgvDocumentsDrawings.CurrentRow.Cells("Document ID").Value

        If DataLayer.UnconfirmDocument(documentid) = True Then

            LoadDocuments(VendorID)

        Else

            RadMessageBox.Show("You can not unconfirm this document.")

        End If

    End Sub

    This is the function that loads the grids

    Public Sub LoadDocuments(ByVal VendorID As Integer)

        Try

            Dim CommandColumn As New GridViewCommandColumn
            CommandColumn.Name = "Unconfirm"
            CommandColumn.HeaderText = ""
            CommandColumn.DefaultText = "Unconfirm"
            CommandColumn.UseDefaultText = True
            CommandColumn.TextAlignment = ContentAlignment.MiddleCenter

            If rgvDocumentsDrawings.RowCount = 0 Then

                rgvDocumentsDrawings.Columns.Add(CommandColumn)

            End If

            If rgvDocumentsPO.RowCount = 0 Then

                rgvDocumentsPO.Columns.Add(CommandColumn)

            End If

        Catch ex As Exception

        End Try

        rgvDocumentsPO.DataSource = DataLayer.GetActiveDocumentsByDocTypeAndVendor(2, VendorID)
        rgvDocumentsDrawings.DataSource = DataLayer.GetActiveDocumentsByDocTypeAndVendor(3, VendorID)

        rgvDocumentsPO.Columns("Document ID").IsVisible = False
        rgvDocumentsDrawings.Columns("Document ID").IsVisible = False

        rgvDocumentsPO.Columns("Unconfirm").Width = 100
        rgvDocumentsDrawings.Columns("Unconfirm").Width = 100

        rgvDocumentsPO.BestFitColumns()
        rgvDocumentsDrawings.BestFitColumns()

    End Sub

    Any ideas on why this might be firing an error?

    Thanks,
    Chuck
  2. Jack
    Admin
    Jack avatar
    2335 posts

    Posted 19 Dec 2011 Link to this post

    Hello Kawauser,

    Thank you for contacting us.

    From the code snippet I can conclude that you are adding the same GridViewCommandColumn in both grids. If this is true, this could be the reason for the issue. Grid columns are designed to be used in only one instance of RadGridView. I suggest that you create two instances of GridViewCommandColumn, one for every instance of RadGridView. If the issue continues to appear, please send us your application and we will investigate this issue in detail.

    Looking forward to your reply.

    All the best,
    Jack
    the Telerik team

    Q3’11 of RadControls for WinForms is available for download (see what's new). Get it today.

  3. UI for WinForms is Visual Studio 2017 Ready
  4. KawaUser
    KawaUser avatar
    57 posts
    Member since:
    Oct 2010

    Posted 19 Dec 2011 Link to this post

    That seems to have done the trick.

    Now it looks like this.

    Public Sub LoadDocuments(ByVal VendorID As Integer)

        Try

            Dim POCommandColumn As New GridViewCommandColumn
            POCommandColumn.Name = "Unconfirm"
            POCommandColumn.HeaderText = ""
            POCommandColumn.DefaultText = "Unconfirm"
            POCommandColumn.UseDefaultText = True
            POCommandColumn.TextAlignment = ContentAlignment.MiddleCenter

            Dim DocCommandColumn As New GridViewCommandColumn
            DocCommandColumn.Name = "Unconfirm"
            DocCommandColumn.HeaderText = ""
            DocCommandColumn.DefaultText = "Unconfirm"
            DocCommandColumn.UseDefaultText = True
            DocCommandColumn.TextAlignment = ContentAlignment.MiddleCenter

            If rgvDocumentsDrawings.RowCount = 0 Then

                rgvDocumentsDrawings.Columns.Add(POCommandColumn)

            End If

            If rgvDocumentsPO.RowCount = 0 Then

                rgvDocumentsPO.Columns.Add(DocCommandColumn)

            End If

        Catch ex As Exception

        End Try

        rgvDocumentsPO.DataSource = DataLayer.GetActiveDocumentsByDocTypeAndVendor(2, VendorID)
        rgvDocumentsDrawings.DataSource = DataLayer.GetActiveDocumentsByDocTypeAndVendor(3, VendorID)

        rgvDocumentsPO.Columns("Document ID").IsVisible = False
        rgvDocumentsDrawings.Columns("Document ID").IsVisible = False

        rgvDocumentsPO.Columns("Unconfirm").Width = 100
        rgvDocumentsDrawings.Columns("Unconfirm").Width = 100

        rgvDocumentsPO.BestFitColumns()
        rgvDocumentsDrawings.BestFitColumns()

    End Sub


    Thank you,
    Chuck
