    hi,

    i'm using control RadHtmlChart wich i bind it programaticly

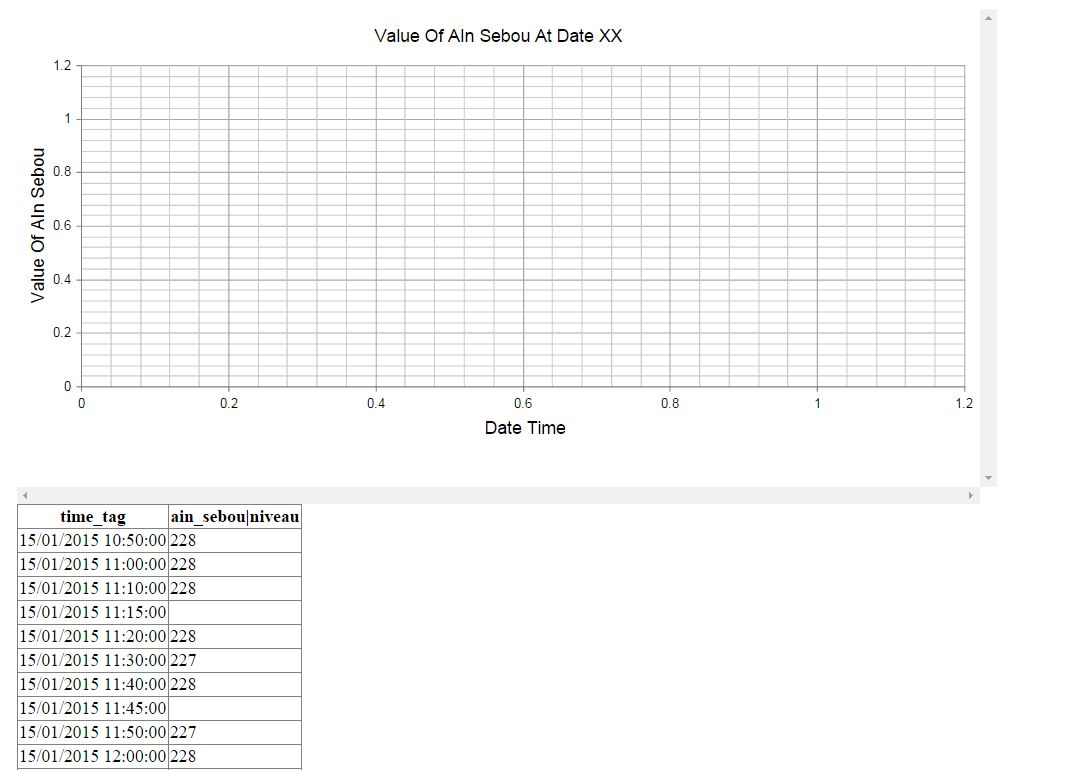

    this is part of my code and in the pic the data don't display i dont know why plz help me i'm using gridview to make sure if i have data in datatable and it works



    string req = " select time_tag,[ain_sebou|niveau] from QTSW_DATA1 where time_tag between '15/01/2015 10:49:59' AND '15/02/2015 10:49:59'";
                Connecter();
                if (DS.Tables.Contains("TRChart"))
                {
                    DS.Tables.Remove("TRChart");
                }
                SqlDataAdapter da = new SqlDataAdapter(req, con);
                da.Fill(DS, "TRChart");
                Deconnecter();
                RChart.DataSource = DS.Tables["TRChart"];
                RChart.DataBind();

                ScatterLineSeries SL = new ScatterLineSeries();
                SL.DataFieldX = "time_tag";
                SL.DataFieldY = "ain_sebou|niveau";
                RChart.PlotArea.Series.Add(SL);
                RChart.PlotArea.XAxis.TitleAppearance.Text = "Date Time";
                RChart.PlotArea.YAxis.TitleAppearance.Text = "Value Of AIn Sebou";

    // here i bind Gridview

               Gridview1.DataSource = DS.Tables["TRChart"];
               Gridview1.DataBind();



    plzz i need help

  2. Danail Vasilev
    Admin
    Danail Vasilev avatar
    1494 posts

    Posted 23 Apr 2015 Link to this post

    Hello Essoufi,

    Special characters in data source field names should be escaped as per this article - http://www.telerik.com/help/aspnet-ajax/htmlchart-troubleshooting-common-issues.html#data-source-field-name-special-chars

    Regards,
    Danail Vasilev
    Telerik
