Binding problem with nested childtabledefinitions

7 posts, 0 answers
  1. Jose
    Jose avatar
    4 posts
    Member since:
    Jan 2011

    Posted 26 Oct 2011 Link to this post

    I'm using a RadTreeListView to display the following data (this is a mockup of the real business model):

    Directory AAA
    |__ SourceFile 001
                      |__ Function 001
                      |__ Function 002
    |__ SourceFile 002
                      |__ Function 001
                      |__ Function 002
    Directory BBB
    |__ Directory BBB.1
                      |__ SourceFile 001
                                        |__ Function 001
    |__ SourceFile 002
                      |__ Function 001
                      |__ Function 002

    Model for these and the xaml are using are below:
    // 1) Classes that define each of the levels (NodeItem being the base class)

        public class NodeItem
        {
            public string Name { get; set; }
            public string Path { get; set; }
        }

        public class SourceDirectoryItem : NodeItem
        {
            public SourceDirectoryItem()
            {
                this.Children = new ObservableCollection<NodeItem>();
            }

            public ObservableCollection<NodeItem> Children { get; set; }
        }

        public class SourceFileItem : NodeItem
        {
            public SourceFileItem()
            {
                this.Functions = new ObservableCollection<NodeItem>();
            }

            public ObservableCollection<NodeItem> Functions { get; set; }
        }

        public class FunctionItem : NodeItem
        {
        }

    // 2) XAML

            <telerik:RadTreeListView
                    AutoGenerateColumns="False"
                    ItemsSource="{Binding Nodes}">

                <telerik:RadTreeListView.ChildTableDefinitions>
                    <telerik:TreeListViewTableDefinition ItemsSource="{Binding Children}">

                        <telerik:TreeListViewTableDefinition.ChildTableDefinitions>

                            <telerik:TreeListViewTableDefinition ItemsSource="{Binding Children}">
                                <telerik:TreeListViewTableDefinition ItemsSource="{Binding Functions}" />
                            </telerik:TreeListViewTableDefinition>

                        </telerik:TreeListViewTableDefinition.ChildTableDefinitions>

                    </telerik:TreeListViewTableDefinition>
                </telerik:RadTreeListView.ChildTableDefinitions>

                <telerik:RadTreeListView.Columns>
                    <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}" Header="NAME">

                    </telerik:GridViewDataColumn>
                </telerik:RadTreeListView.Columns>

            </telerik:RadTreeListView>

    // 3) In the VM there is nothing special, this is how I populate the nodes:

            private void InitNodes()
            {
                SourceDirectoryItem root = new SourceDirectoryItem() { Name = "c:\\", Path = Name };
                SourceDirectoryItem firstLevel = new SourceDirectoryItem() { Name = "c:\\folder1", Path = Name };
                SourceDirectoryItem secondLevel01 = new SourceDirectoryItem() { Name = "c:\\folder1\\temp", Path = Name };
                SourceDirectoryItem secondLevel02 = new SourceDirectoryItem() { Name = "c:\\folder1\\programfiles", Path = Name };
                firstLevel.Children.Add(secondLevel01);
                firstLevel.Children.Add(secondLevel02);
                root.Children.Add(firstLevel);

                SourceFileItem sf = new SourceFileItem();
                sf.Name = "foo.cs";
                sf.Path = "c:\\temp";
                sf.Functions.Add(new FunctionItem() { Name = "Method001" });
                sf.Functions.Add(new FunctionItem() { Name = "Method002" });
                sf.Functions.Add(new FunctionItem() { Name = "Method003" });
                secondLevel01.Children.Add(sf);

                SourceFileItem sf1 = new SourceFileItem();
                sf1.Name = "bar.cs";
                sf1.Path = "c:\\programfiles";
                sf1.Functions.Add(new FunctionItem() { Name = "AnotherMethod" });
                secondLevel02.Children.Add(sf1);

                this.Nodes.Add(root);
            }

            private ObservableCollection<NodeItem> nodes;
            public ObservableCollection<NodeItem> Nodes
            {
                get
                {
                    return this.nodes;
                }

                set
                {
                    this.nodes = value;
                    this.OnPropertyChanged("Nodes");
                }

            }

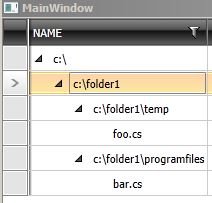

    So my issue is that if I leave the binding for Functions  in the XAML I get what you can see in pic 1 (issue.jpg) the third level directory entries are not expandable; if I remove that binding then I get the hierarchy working, of course up until the source file level (no_functions_binding.jpg).

    Any idea what could be going on?

    Thanks,
    Jose


  2. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 31 Oct 2011 Link to this post

    Hi Jose,

     You do not need to put any inner child table definitions. It would be enough to use this XAML definition:

    <telerik:RadTreeListView
                   AutoGenerateColumns="False"
                   ItemsSource="{Binding Nodes}">
               <telerik:RadTreeListView.ChildTableDefinitions>
                   <telerik:TreeListViewTableDefinition ItemsSource="{Binding Children}">
                     </telerik:TreeListViewTableDefinition>
               </telerik:RadTreeListView.ChildTableDefinitions>
               <telerik:RadTreeListView.Columns>
                   <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}" Header="NAME">
                   </telerik:GridViewDataColumn>
               </telerik:RadTreeListView.Columns>
           </telerik:RadTreeListView>

    Is there some problem with this XAML definition in your case?

    Kind regards,
    Didie
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  3. UI for WPF is Visual Studio 2017 Ready
  4. Jose
    Jose avatar
    4 posts
    Member since:
    Jan 2011

    Posted 31 Oct 2011 Link to this post

    Thanks for the answer Didie, unfortunately it doesn't work, it shows the 'files' as children of directories but it won't show functions (children of the file object) as it's not included in the definition. That's why in my example I also used a child table definition for the Functions, see below:

    <telerik:RadTreeListView
            AutoGenerateColumns="False"
            ItemsSource="{Binding Nodes}">

        <telerik:RadTreeListView.ChildTableDefinitions>
            <telerik:TreeListViewTableDefinition ItemsSource="{Binding Children}">

                <telerik:TreeListViewTableDefinition.ChildTableDefinitions>

                    <telerik:TreeListViewTableDefinition ItemsSource="{Binding Children}">
                        <telerik:TreeListViewTableDefinition ItemsSource="{Binding Functions}" />
                    </telerik:TreeListViewTableDefinition>

                </telerik:TreeListViewTableDefinition.ChildTableDefinitions>

            </telerik:TreeListViewTableDefinition>
        </telerik:RadTreeListView.ChildTableDefinitions>

        <telerik:RadTreeListView.Columns>
            <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}" Header="NAME">

            </telerik:GridViewDataColumn>
        </telerik:RadTreeListView.Columns>

    </telerik:RadTreeListView>


    Thanks.
    Jose
  5. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 01 Nov 2011 Link to this post

    Hi Jose,

     I am a little bit confused by this behavior. I have created a sample project following your instructions and the code snippets you have provided.

    As you can see, at my end all the Nodes are populated fine. Could you please review my sample project and see what I have missed? Probbaly it is somehow different from your implementation.

    All the best,
    Didie
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  6. Jose
    Jose avatar
    4 posts
    Member since:
    Jan 2011

    Posted 01 Nov 2011 Link to this post

    I tried your project and you get the same thing I sent on the no-functions-binding.jpg from the original post. That is all nodes up to the source files, when the idea is that the files are also 'expandable' and their children are functions. From the view model you can see that for foo.cs you have 3 children (functions), Method001/Method002/Method003, similarly for bar.cs there is a child "AnotherMethod".

    So the final hierarchy should be similar to the following:

    Directory AAA
    |__ SourceFile 001
                      |__ Function 001 <<=== function for sourcefile001, your project wouldnt show this
                      |__ Function 002  <<=== function for sourcefile001, your project wouldnt show this

    |__ SourceFile 002
                      |__ Function 001 <<=== function for sourcefile002, your project wouldnt show this
                      |__ Function 002 <<=== function for sourcefile002, your project wouldnt show this

    Directory BBB
    |__ Directory BBB.1
                      |__ SourceFile 001
                                        |__ Function 001

    |__ SourceFile 002
                      |__ Function 001
                      |__ Function 002

    The project you attached displays only up to the source files in that structure. That's why in my original code I had nested child definitions.

    FYI, I'm using RadControls for WPF Q2 2011 SP1
    Jose



  7. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 02 Nov 2011 Link to this post

    Hello Jose,

     I apologize for my misunderstanding.

    Unfortunately we do not support such a kind of nested child templates. You will need to have the same name for all the Children.

    All the best,
    Didie
    the Telerik team

    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>

  8. Jose
    Jose avatar
    4 posts
    Member since:
    Jan 2011

    Posted 02 Nov 2011 Link to this post

    I see, thanks for following up Didie.
