Binding DataTable.DefaultView to RadGridView with dot in columnName

[Ke]

Hi There,
I am binding DataTable.DefaultView to RadGridView and I have column in the datatable named "a.b", which appears blank in RadGridView. Also grouping by it will generate an exception saying "property a doesn't exist in DataRowView". Is there a way to tweak the binding so column "a.b" would work?

Thanks,
Ke

[Dimitrina]

Hello Ke,

Binding to properties like "a.b" should work find and the values should be resolved from the binding. If it is different at your side, may I ask you to test the same with the MS DataGrid?

As to grouping on such a property - this is not supported as a property name starting with a dot is not a valid name in .Net Framework.

Regards,
Didie
Telerik

[Ke]

Hi There,
We are not bound the column to a property "a.b", but there is a column named "a.b" in the datatable. It works fine binding to the datatable directly(both grouping and data display works), but when we bind RadGridView with dataTable.DefaultView, it stops working complaining about "property a doesn't exist in DataRowView".

[Dimitrina]

Hello,

I can still not observe the issue at my end. Please find attached a test solution I created in my attempt to reproduce the problem.

Would you please modify it to illustrate your setup?

Regards,
Didie
Telerik

[Ke]

Hi Didie,

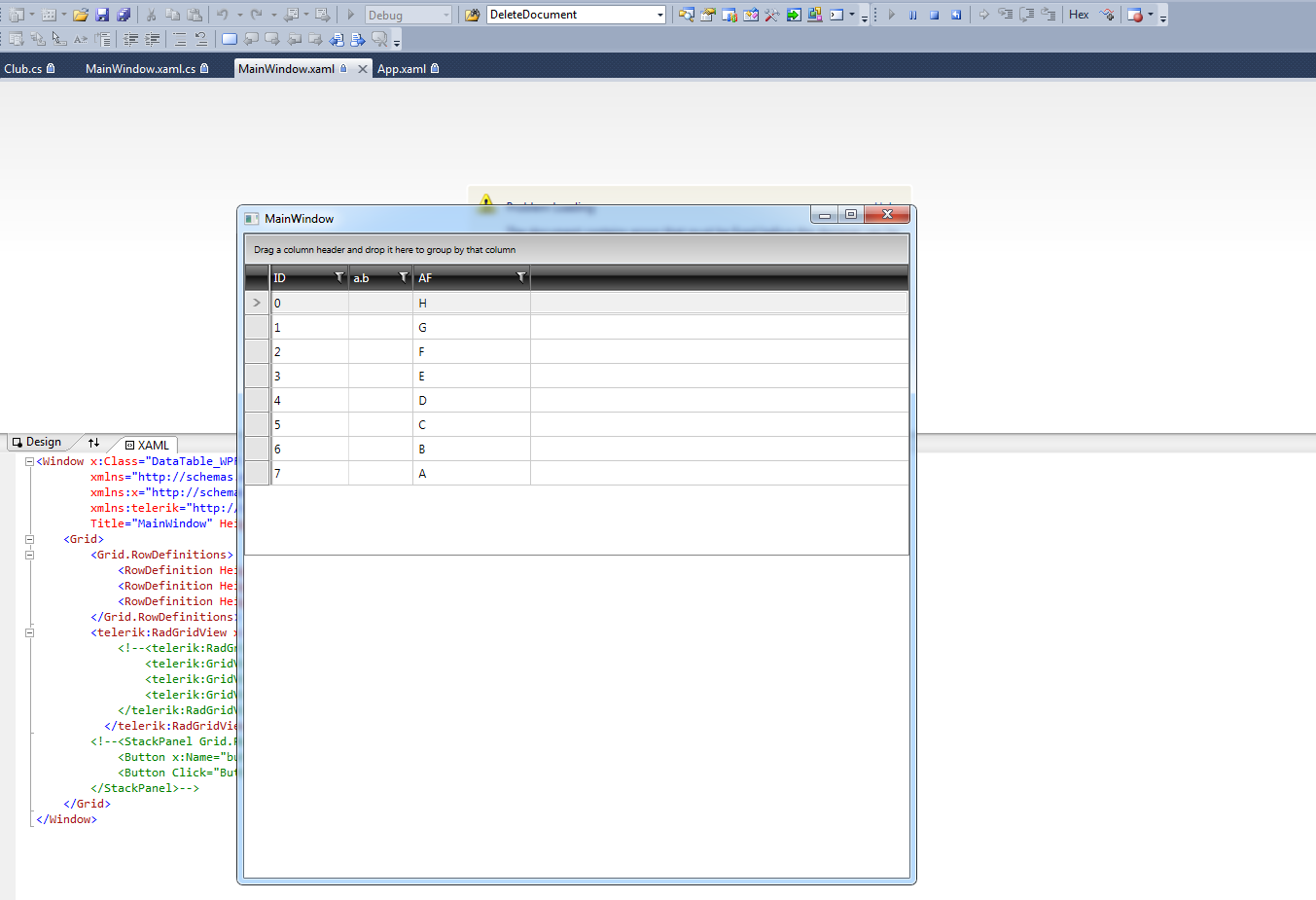

Attached is the screenshot of running your example. We are using version 2013.3.1016.40. Is it fixed in later versions?

Thanks,
Ke

[Ke]

Hi Didie,
So for grouping we did some digging and found the code below in your dlls,  so if you could just add DataRowView like you did with DataRow, then grouping/aggregates by columns with dots in their names(a.b) will work. Can you help check if this can be fixed in your next release? Thanks!

namespace Telerik.Windows.Data.Expressions
{
    internal static class ExpressionBuilderFactory
    {
        public static MemberAccessExpressionBuilderBase MemberAccess(Type elementType, Type memberType, string memberName)
        {
            memberType = memberType ?? typeof(object);
            if (elementType.IsCompatibleWith(typeof(DataRow)))
            {
                return new DataRowFieldAccessExpressionBuilder(memberType, memberName);
            }
            if (elementType.IsCompatibleWith(typeof(ICustomTypeDescriptor)))
            {
                return new CustomTypeDescriptorPropertyAccessExpressionBuilder(elementType, memberType, memberName);
            }
            if (elementType.IsCompatibleWith(typeof(XmlNode
)))
            {
                return new XmlNodeChildElementAccessExpressionBuilder(memberName);
            }
            if (elementType.IsDynamic())
            {
                return new DynamicPropertyAccessExpressionBuilder(elementType, memberName, memberType);
            }
            return new PropertyAccessExpressionBuilder(elementType, memberName, memberType);
        }

        public static MemberAccessExpressionBuilderBase MemberAccess(IQueryable source, Type memberType, string memberName)
        {
            MemberAccessExpressionBuilderBase objectsProvider = ExpressionBuilderFactory.MemberAccess(source.ElementType, memberType, memberName);
            objectsProvider.Options.LiftMemberAccessToNull = source.Provider.IsLinqToObjectsProvider();
            return objectsProvider;
        }
    }
}

[Dimitrina]

Hi Ke,

You are right. Such a Binding is not supported with the latest version.
I apologize for misleading you. I am afraid currently I cannot suggest you a workaround.

I have forwarded your feedback to the development team.

Regards,
Didie
Telerik

[Thomas]

Are there any solution for this?

[Petya]

Hello Thomas,

The issue hasn't been fixed at this point, but we'll try to resolve it for one of our upcoming releases. I created a public item where you can track the team's progress, you can subscribe to it here.

Regards,
Petya
Telerik
