Anyway to run a test from a button on a form

8 posts, 0 answers
  1. Mark Oliver
    Mark Oliver avatar
    3 posts
    Member since:
    Dec 2009

    Posted 03 Apr 2011 Link to this post

    Hi Telerik Team,

    My boss would like me to create unit tests that can be started on a windows form button click.
    Is there anyway to do this?

    Basically I have added a new windows form project called "TheTester" and on a button click run the test. I added the reference to the "TestExample" project and set "TheTester" as the startup project. "TheTester" recognizes "TestExample" until I run the project then somehow loses the reference. (Code below)

    Also, is there a way that when I click "Convert all steps to code" then delete the ".aii" file while still keeping the pages.g.vb file intact?


    Any assistance would be much appreciated.

    Imports ArtOfTest.WebAii.Controls.HtmlControls
    Imports ArtOfTest.WebAii.Controls.HtmlControls.HtmlAsserts
    Imports ArtOfTest.WebAii.Core
    Imports ArtOfTest.WebAii.ObjectModel
    Imports ArtOfTest.WebAii.TestAttributes
    Imports ArtOfTest.WebAii.TestTemplates
    Imports ArtOfTest.WebAii.Win32.Dialogs

    Imports ArtOfTest.WebAii.Silverlight
    Imports ArtOfTest.WebAii.Silverlight.UI

    Imports Microsoft.VisualStudio.TestTools.UnitTesting

    Namespace TestExample1
        ''' <summary>
        ''' Summary description for GoogleTelerikUnitTest
        ''' </summary>
        <TestClass()> _
        Public Class GoogleTelerikUnitTest
            Inherits BaseTest

    #Region "[Setup / TearDown]"

            Private testContextInstance As TestContext = Nothing
            ''' <summary>
            '''Gets or sets the VS test context which provides
            '''information about and functionality for the
            '''current test run.
            '''</summary>
            Public Property TestContext() As TestContext
                Get
                    Return testContextInstance
                End Get
                Set(ByVal value As TestContext)
                    testContextInstance = value
                End Set
            End Property


            'Use ClassInitialize to run code before running the first test in the class
            <ClassInitialize()> _
            Public Shared Sub MyClassInitialize(ByVal testContext As TestContext)
            End Sub
            Private _pages As Pages

            Public ReadOnly Property Pages As Pages
                Get
                    If (_pages Is Nothing) Then
                        _pages = New Pages(Manager.Current)
                    End If
                    Return _pages
                End Get
            End Property


            ' Use TestInitialize to run code before running each test
            <TestInitialize()> _
            Public Sub MyTestInitialize()
                '#region WebAii Initialization

                ' Initializes WebAii manager to be used by the test case.
                ' If a WebAii configuration section exists, settings will be
                ' loaded from it. Otherwise, will create a default settings
                ' object with system defaults.
                '
                ' Note: We are passing in a delegate to the VisualStudio
                ' testContext.WriteLine() method in addition to the Visual Studio
                ' TestLogs directory as our log location. This way any logging
                ' done from WebAii (i.e. Manager.Log.WriteLine()) is
                ' automatically logged to the VisualStudio test log and
                ' the WebAii log file is placed in the same location as VS logs.
                '
                ' If you do not care about unifying the log, then you can simply
                ' initialize the test by calling Initialize() with no parameters;
                ' that will cause the log location to be picked up from the config
                ' file if it exists or will use the default system settings (C:\WebAiiLog\)
                ' You can also use Initialize(LogLocation) to set a specific log
                ' location for this test.

                ' Pass in 'true' to recycle the browser between test methods
                Initialize(False, Me.TestContext.TestLogsDir, New TestContextWriteLine(AddressOf Me.TestContext.WriteLine))

                ' If you need to override any other settings coming from the
                ' config section you can comment the 'Initialize' line above and instead
                ' use the following:

                '
                '
                '            // This will get a new Settings object. If a configuration
                '            // section exists, then settings from that section will be
                '            // loaded
                '
                '            Settings settings = GetSettings();
                '
                '            // Override the settings you want. For example:
                '            settings.DefaultBrowser = BrowserType.FireFox;
                '
                '            // Now call Initialize again with your updated settings object
                '            Initialize(settings, new TestContextWriteLine(AddressOf this.TestContext.WriteLine));
                '
                '


                ' Set the current test method. This is needed for WebAii to discover
                ' its custom TestAttributes set on methods and classes.
                ' This method should always exist in [TestInitialize()] method.
                SetTestMethod(Me, DirectCast(TestContext.Properties("TestName"), String))

                '
                ' Place any additional initialization here
                '

            End Sub

            ' Use TestCleanup to run code after each test has run
            <TestCleanup()> _
            Public Sub MyTestCleanup()

                '
                ' Place any additional cleanup here
                '

                '#region WebAii CleanUp

                ' Shuts down WebAii manager and closes all browsers currently running
                ' after each test. This call is ignored if recycleBrowser is set
                Me.CleanUp()

            End Sub

            'Use ClassCleanup to run code after all tests in a class have run
            <ClassCleanup()> _
            Public Shared Sub MyClassCleanup()
                ' This will shut down all browsers if
                ' recycleBrowser is turned on. Else
                ' will do nothing.
                ShutDown()
            End Sub
    #End Region

            <TestMethod()> Public Sub GoogleTelerik()
                'Launch an instance of the browser
                Manager.LaunchNewBrowser()

                'Navigate to : 'http://google.co.nz/'
                ActiveBrowser.NavigateTo("http://google.co.nz/")

                'Set 'QText' text to 'telerik'
                Pages.Google.QText.Wait.ForExists(5000)
                Pages.Google.QText.Text = "telerik"

                'Click 'BtnGSubmit'
                Pages.Google.BtnGSubmit.Click(False)
                'Click 'TelerikEmTag'
                Pages.TelerikGoogleSearch.TelerikEmTag.Click(False)
            End Sub

        End Class
    End Namespace

    Public Class Form1

        Private Sub RunTest_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles RunTest.Click
            Dim theTest As New TestExample.TestExample1.GoogleTelerikUnitTest()
            theTest.MyTestInitialize()
            theTest.GoogleTelerik()
        End Sub
    End Class

  2. Cody
    Admin
    Cody avatar
    3360 posts

    Posted 07 Apr 2011 Link to this post

    Hello Mark Oliver,

    Actually I would like to propose that you NOT convert your .aii tests to code and run them directly from your WinForms application using code like this:

    ArtOfTest.WebAii.Design.Execution.RunHelper.Test(@"c:\testprojectdir\test.aii", @"c:\testprojectdir\bin\debug\testproject.dll");

    Will this approach work for you?

    Greetings,
    Cody
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. Mark Oliver
    Mark Oliver avatar
    3 posts
    Member since:
    Dec 2009

    Posted 11 Apr 2011 Link to this post

    Hi Cody,

    That solution would be ideal.

    Currently I have implemented the solution above but when I run the windows form application outside of visual studio the browser opens but it doesn't actually run the test. Is there a way that I can run the test on the button click outside of VS?

    As described I have two projects within the one solution; one with the tests, one with the windows form application. The application project references the test project (via .dll).

    Also, can I install this windows form application on another computer and run the test without having to install Telerik Web Test Studio?


  4. Cody
    Admin
    Cody avatar
    3360 posts

    Posted 11 Apr 2011 Link to this post

    Hello Mark Oliver,

    To make your current approach work you'll have to change things around a bit:

    1: Get rid of all of the decorations (ClassInitialize, TestInitialize, TestMethod, etc.). Since you're trying to call it as a function of your own application instead of as a VS test, you treat it as such.
    2) Move all of the setup and tear down code into the GoogleTelerik function

    That should get you going.

    Regards,
    Cody
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  5. Mark Oliver
    Mark Oliver avatar
    3 posts
    Member since:
    Dec 2009

    Posted 18 Apr 2011 Link to this post

    Hi Cody,

    I've done as you suggested and can now run the tests outside of visual studio from a button click on a windows form application in Chrome and Firefox but am currently trying to execute the test in Internet Explorer.

    Inside of visual studio the test runs perfectly.

    Below is the error:
    See the end of this message for details on invoking
    just-in-time (JIT) debugging instead of this dialog box.


    ************** Exception Text **************
    System.ApplicationException: Exception thrown attempting to launch Internet Explorer. Please make sure Internet Explorer is properly installed and you are able to launch it. ---> System.NullReferenceException: Object reference not set to an instance of an object.
       at ArtOfTest.Common.Win32.WindowManager.Attach(IntPtr& handle, Boolean findTabWindow, Boolean loadClr, IntPtr& hookId)
       at ArtOfTest.WebAii.BrowserSpecialized.InternetExplorer.InternetExplorerActions.LaunchNewBrowserInstance(Int32 timeout, ProcessWindowStyle windowStyle, String pipename)
       --- End of inner exception stack trace ---
       at ArtOfTest.WebAii.BrowserSpecialized.InternetExplorer.InternetExplorerActions.LaunchNewBrowserInstance(Int32 timeout, ProcessWindowStyle windowStyle, String pipename)
       at ArtOfTest.WebAii.Core.Manager.LaunchNewBrowser(BrowserType browserToLaunch, Boolean waitForBrowserToConnect, ProcessWindowStyle windowStyle, String arguments)
       at ArtOfTest.WebAii.Core.Manager.LaunchNewBrowser(BrowserType browserToLaunch, Boolean waitForBrowserToConnect, ProcessWindowStyle windowStyle)
       at TestProject.Tests.GoogleTelerikUnitTest.GoogleTelerik() in C:\Users\MOliver\Documents\Test Application\TestProject\TestProject\GoogleTelerikUnitTest.vb:line 175
       at TestProject.Form1.Button1_Click(Object sender, EventArgs e) in C:\Users\MOliver\Documents\Test Application\TestProject\TestProject\Form1.vb:line 5
       at System.Windows.Forms.Button.OnMouseUp(MouseEventArgs mevent)
       at System.Windows.Forms.Control.WmMouseUp(Message& m, MouseButtons button, Int32 clicks)
       at System.Windows.Forms.Control.WndProc(Message& m)
       at System.Windows.Forms.ButtonBase.WndProc(Message& m)
       at System.Windows.Forms.Button.WndProc(Message& m)
       at System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)




    ************** Loaded Assemblies **************
    mscorlib
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.225 (RTMGDR.030319-2200)
        CodeBase: file:///C:/Windows/Microsoft.NET/Framework64/v4.0.30319/mscorlib.dll
    ----------------------------------------
    TestProject
        Assembly Version: 1.0.0.0
        Win32 Version: 1.0.0.0
        CodeBase: file:///C:/Users/MOliver/Documents/Test%20Application/TestProject/TestProject/bin/Debug/TestProject.exe
    ----------------------------------------
    System.Windows.Forms
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Windows.Forms/v4.0_4.0.0.0__b77a5c561934e089/System.Windows.Forms.dll
    ----------------------------------------
    System.Drawing
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Drawing/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Drawing.dll
    ----------------------------------------
    System
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System/v4.0_4.0.0.0__b77a5c561934e089/System.dll
    ----------------------------------------
    Microsoft.VisualBasic
        Assembly Version: 10.0.0.0
        Win32 Version: 10.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/Microsoft.VisualBasic/v4.0_10.0.0.0__b03f5f7f11d50a3a/Microsoft.VisualBasic.dll
    ----------------------------------------
    System.Core
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Core/v4.0_4.0.0.0__b77a5c561934e089/System.Core.dll
    ----------------------------------------
    System.Configuration
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 (RTMRel.030319-0100)
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Configuration/v4.0_4.0.0.0__b03f5f7f11d50a3a/System.Configuration.dll
    ----------------------------------------
    System.Xml
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/System.Xml/v4.0_4.0.0.0__b77a5c561934e089/System.Xml.dll
    ----------------------------------------
    ArtOfTest.WebAii
        Assembly Version: 2010.3.1421.0
        Win32 Version: 2010.3.1421.0
        CodeBase: file:///C:/Windows/assembly/GAC_MSIL/ArtOfTest.WebAii/2010.3.1421.0__4fd5f65be123776c/ArtOfTest.WebAii.dll
    ----------------------------------------
    Microsoft.VisualStudio.QualityTools.UnitTestFramework
        Assembly Version: 10.0.0.0
        Win32 Version: 10.0.30319.1
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/Microsoft.VisualStudio.QualityTools.UnitTestFramework/v4.0_10.0.0.0__b03f5f7f11d50a3a/Microsoft.VisualStudio.QualityTools.UnitTestFramework.dll
    ----------------------------------------
    ArtOfTest.Common
        Assembly Version: 2010.3.1421.0
        Win32 Version: 2010.3.1421.0
        CodeBase: file:///C:/Windows/assembly/GAC_MSIL/ArtOfTest.Common/2010.3.1421.0__14a0200bfcbb7b62/ArtOfTest.Common.dll
    ----------------------------------------
    UIAutomationClient
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/UIAutomationClient/v4.0_4.0.0.0__31bf3856ad364e35/UIAutomationClient.dll
    ----------------------------------------
    UIAutomationTypes
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/UIAutomationTypes/v4.0_4.0.0.0__31bf3856ad364e35/UIAutomationTypes.dll
    ----------------------------------------
    UIAutomationProvider
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/UIAutomationProvider/v4.0_4.0.0.0__31bf3856ad364e35/UIAutomationProvider.dll
    ----------------------------------------
    UIAutomationClientsideProviders
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/UIAutomationClientsideProviders/v4.0_4.0.0.0__31bf3856ad364e35/UIAutomationClientsideProviders.dll
    ----------------------------------------
    Accessibility
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/Accessibility/v4.0_4.0.0.0__b03f5f7f11d50a3a/Accessibility.dll
    ----------------------------------------
    WindowsBase
        Assembly Version: 4.0.0.0
        Win32 Version: 4.0.30319.1 built by: RTMRel
        CodeBase: file:///C:/Windows/Microsoft.Net/assembly/GAC_MSIL/WindowsBase/v4.0_4.0.0.0__31bf3856ad364e35/WindowsBase.dll
    ----------------------------------------
    ArtOfTest.InternetExplorer
        Assembly Version: 2010.3.1421.0
        Win32 Version: 2010.3.1421.0
        CodeBase: file:///C:/Windows/assembly/GAC_MSIL/ArtOfTest.InternetExplorer/2010.3.1421.0__5339893a7cefe4d6/ArtOfTest.InternetExplorer.dll
    ----------------------------------------


    ************** JIT Debugging **************
    To enable just-in-time (JIT) debugging, the .config file for this
    application or computer (machine.config) must have the
    jitDebugging value set in the system.windows.forms section.
    The application must also be compiled with debugging
    enabled.


    For example:


    <configuration>
        <system.windows.forms jitDebugging="true" />
    </configuration>


    When JIT debugging is enabled, any unhandled exception
    will be sent to the JIT debugger registered on the computer
    rather than be handled by this dialog box.

  6. Cody
    Admin
    Cody avatar
    3360 posts

    Posted 19 Apr 2011 Link to this post

    Hi Mark Oliver,

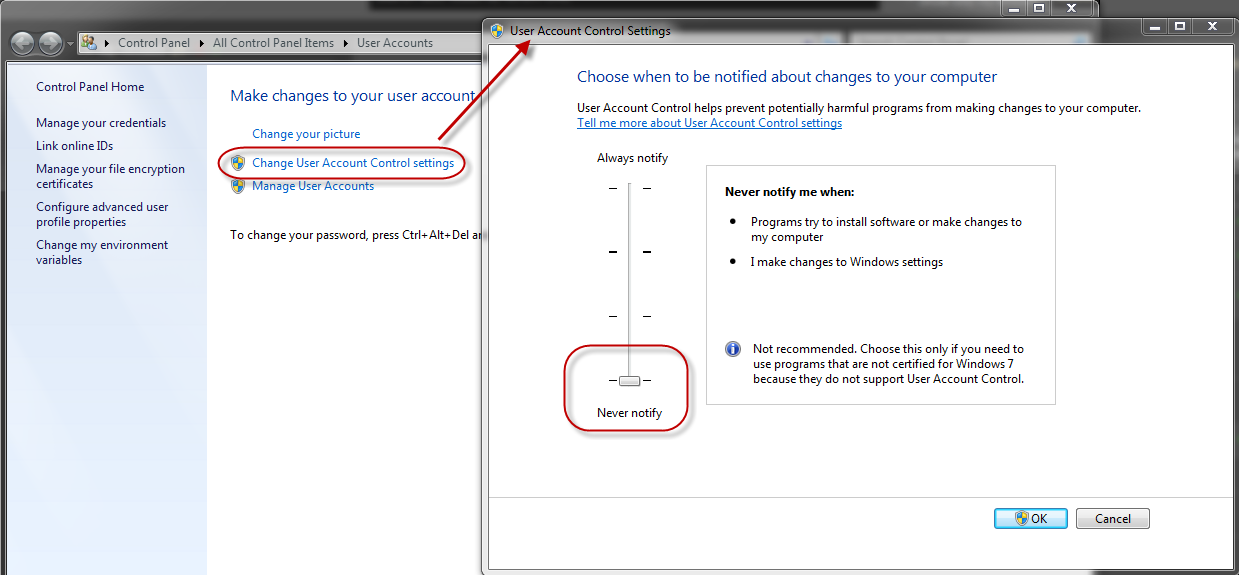

    Does IE launch i.e. can you see the browser window open when you attempt to execute the test? I am wondering if this could be a permission type issue. If you're running Vista or Win 7 or Win 2008 try turning UAC off (see attached screenshot), and/or running your .exe as an administrator. Right click on your .exe and select Run as administrator from the popup context menu.

    Greetings,
    Cody
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  7. Mark Oliver
    Mark Oliver avatar
    3 posts
    Member since:
    Dec 2009

    Posted 19 Apr 2011 Link to this post

    Hi Cody,

    I have tried changing the UAC and running the executable as administrator but to no avail. It launches an Internet Explorer browser (using IE 8) and then produces the error.

    The line of code that follows fails to execute according to the error
    (waitForBrowserToConnect, ProcessWindowStyle windowStyle) at TestProject.Tests.GoogleTelerikUnitTest.GoogleTelerik() in C:\Users\MOliver\Documents\Test Application\TestProject\TestProject\GoogleTelerikUnitTest.vb:line 175):
    Manager.LaunchNewBrowser(BrowserType.InternetExplorer)

    I now have the windows form application and the test within the one project.

    All the appropriate DLL's are all included in the project.
  8. Cody
    Admin
    Cody avatar
    3360 posts

    Posted 25 Apr 2011 Link to this post

    Hello Mark Oliver,

    I have my own example Windows form application successfully executing tests in IE. We must be overlooking something, but I don't know what it is without being able to look through your entire code. Would it be possible to upload your entire project (put it into a .zip file first)? Once I receive it I'll load it into VS, compile it and try running outside of VS.

    The next best alternative is to setup a GoToMeeting and we look at this together on your machine.

    All the best,
    Cody
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
Back to Top
  Cast Your Vote at DevPro Connections! Cast Your Vote at  Win IT Pro Connections!
