Add button to header of GridColumnGroup

9 posts, 0 answers
  1. John
    John avatar
    9 posts
    Member since:
    Dec 2012

    Posted 24 May Link to this post

    Environment:  Visual Studio 2012 using UI for APS.NET AJAX Q2 2016

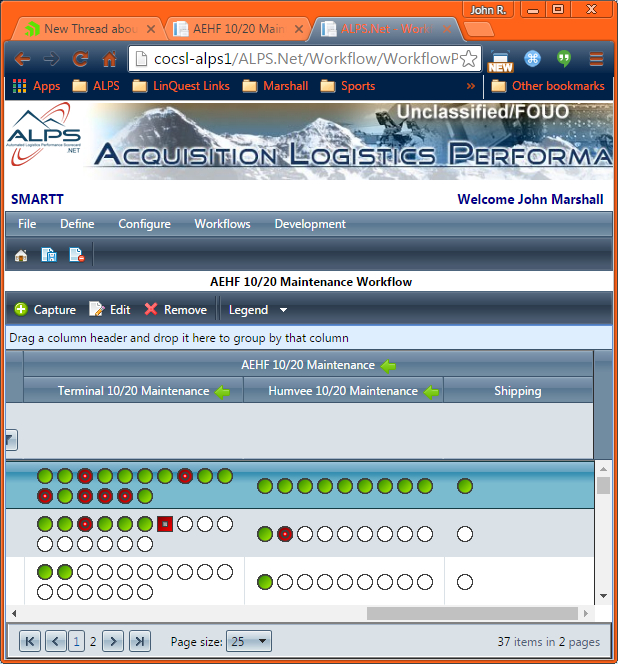

    We are modelling a workflow process using the RadGrid.  I have attached a model of what we are trying to represent, along with other screen shots.

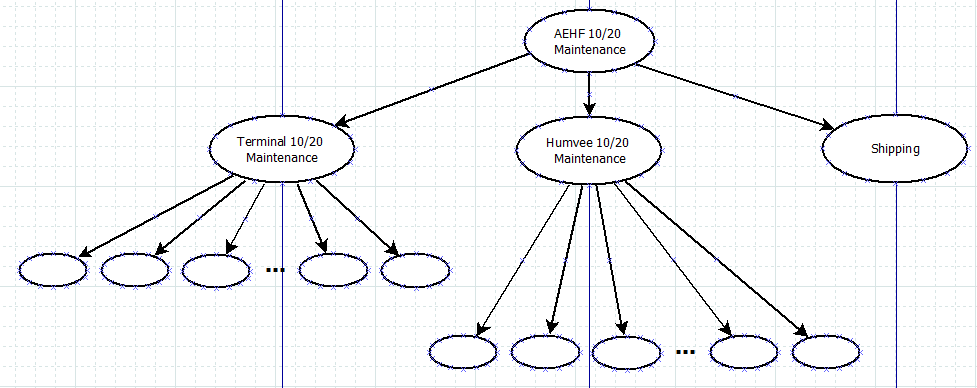

    Figure 1 contains the workflow model.  The model consists of a main task (AEHF 10/20...) that has 3 sub tasks (Terminal 10/20..., Humvee 10/20..., and Shipping).  The 2 of the 3 sub tasks have another layer of sub tasks below them.  Any task that does not have children is represented as a bubble for each line item.  We represent the tasks that do have children in two ways.  1st the task is displayed as a column that is expanded with collapse button along with the task name, each line item then represents the sub tasks of that task (Figure 1 & 4 shows all tasks expanded).  2nd the task is displayed collapsed along with a expand button and the task name, then each line item displays a bubble of the collapsed task, only that task is then displayed, not any of its sub tasks (see Figure 3, the Humvee task is collapsed).  Tasks that have grand children are added as a GridGroupColumn, with is sub tasks (column) have a group name of its parent.  Tasks that have children and not grand children are added as a TemplateColumn.  Being that the workflows are dynamic this is done recursively (see code in AddTaskColumns).  The grid is created in OnInit(), after the grid is defined, we then add the task columns 'AddTaskColumns'.

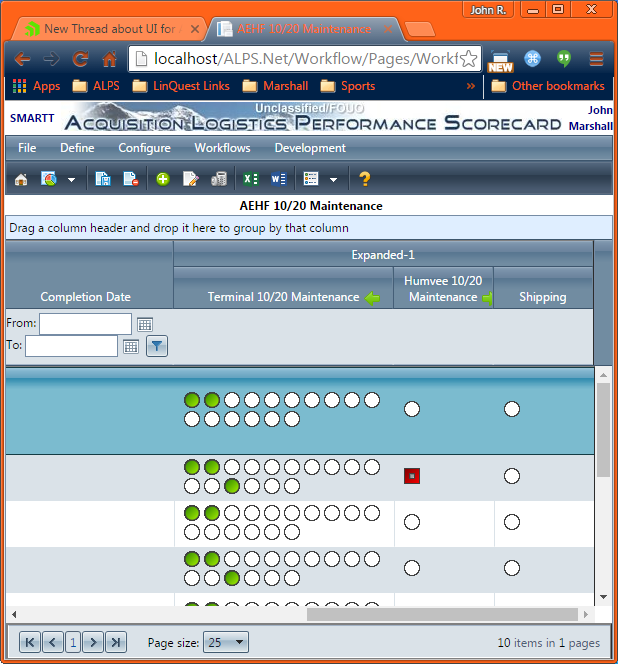

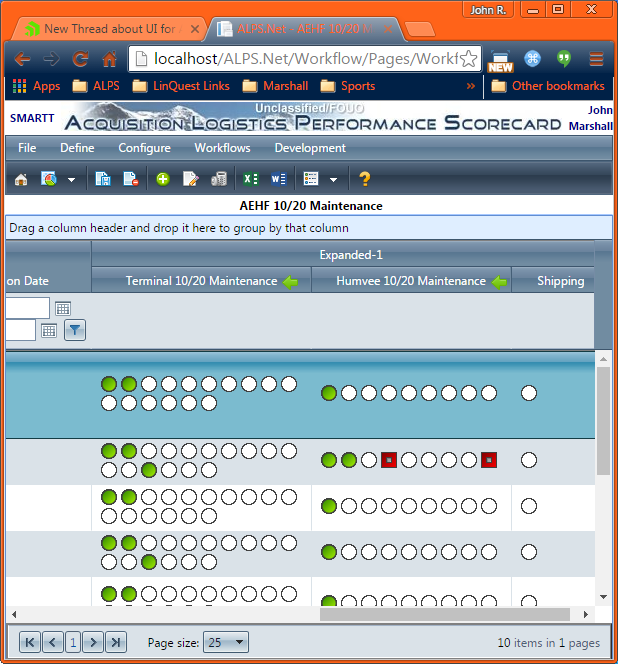

    The problem.  None of the tasks that have grand children are displayed as they were in the previous release.  Figure 4 shows the display as it used to work, Figure 2 shows how it is now displayed.  The names of the columns are changed during the OnGridItemCreated event handler (See code below).  The issue is that the task that has grand children is not replacing the name, and is not adding the collapse button.  Other example documentation I have found is saying that the GridGroupColumn shows up in OnGridItemCreated as a GridGroupHeaderItem, this is not the case, it is showing up as a GridHeaderItem.  Any processing of that item (changing the name, and adding the button) is now showing up in the rendered display.  As you can see in the OnGridItemCreated code below I added an if statement looking for GridGroupHeaderItem, the code never executes.  I am able to change the name of the column by using the RadGridWorkflow.MasterTableView.ColumnGroups finding the correct column then changing it's .HeaderText property, but you can not add additional controls to it since it is not a control.

    How can I get the expand/collapse button to be displayed again?



            private void AddTaskColumns(WorkflowConfiguration task)
            {
                // Add group column if the task has grand children, acts as the Expanded column for this task.
                if (task.HasGrandChildren())
                {
                    // Make this a Group Column
                    GridColumnGroup group = new GridColumnGroup();
                    // Header Text is the only property of a column common between GridColumnGroup and GridColumn that the value can be determined
                    // in the OnItemCreated to be able to properly add the Expand/Collapse button as needed.
                    group.HeaderText = "Expanded-" + task.WorkflowID.ToString();
                    group.HeaderStyle.VerticalAlign = VerticalAlign.Top;
                    group.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                    group.Name = "Group" + task.WorkflowID.ToString();

                    RadGridWorkflow.MasterTableView.ColumnGroups.Add(group);
                    if (task.ParentWorkflowConfiguration != null)
                    {
                        group.ParentGroupName =
                            task.ParentWorkflowConfiguration.WorkflowID.ToString();
                    }
                    // Add sub workflow tasks
                    foreach (WorkflowConfiguration subTask in
                        task.SubWorkflowConfigurations)
                    {
                        AddTaskColumns(subTask);
                    }
                }
                // Add expanded column if the task has children.
                else if (task.HasSubTasks())
                {
                    AlpsGridTemplateColumn expColumn = new AlpsGridTemplateColumn();
                    expColumn.ItemTemplate = new TaskButtonsTemplate(_workflowConfig, task, _functions, "Expanded");
                    expColumn.UniqueName = "Expanded" + task.WorkflowID.ToString();
                    expColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                    expColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                    // Header Text is the only property of a column common between GridColumnGroup and GridColumn that the value can be determined
                    // in the OnItemCreated to be able to properly add the Expand/Collapse button as needed.
                    expColumn.HeaderText = "Expanded-" + task.WorkflowID.ToString();
                    expColumn.AllowSorting = false;
                    expColumn.AllowFiltering = false;
                    expColumn.Groupable = false;
                    expColumn.Reorderable = false;

                    // Do some decent sizing for the amount of tasks/bubbles to show.
                    switch (task.SubWorkflowConfigurations.Count)
                    {
                        case 1:
                        case 2:
                        case 3:
                        case 4:
                            expColumn.HeaderStyle.Width = Unit.Pixel(100);
                            break;

                        case 7:
                        case 8:
                        case 9:
                            expColumn.HeaderStyle.Width = Unit.Pixel(100 + (task.SubWorkflowConfigurations.Count - 4) * 20);
                            break;
                        default:
                            expColumn.HeaderStyle.Width = Unit.Pixel(220);
                            break;
                    }

                    if (task.ParentWorkflowConfiguration != null)
                    {
                        expColumn.ColumnGroupName = "Group" + task.ParentWorkflowConfiguration.WorkflowID.ToString();
                    }
                    RadGridWorkflow.MasterTableView.Columns.Add(expColumn);
                }

                // Every task will have a Collapsed column, this will add the collapsed column.
                AlpsGridTemplateColumn colColumn = new AlpsGridTemplateColumn();
                colColumn.ItemTemplate = new TaskButtonsTemplate(_workflowConfig, task, _functions, "Collapsed");
                colColumn.UniqueName = "Collapsed" + task.WorkflowID.ToString();
                colColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                colColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                colColumn.HeaderStyle.Width = Unit.Pixel(100);
                colColumn.HeaderText = "Collapsed-" + task.WorkflowID.ToString();
                colColumn.AllowSorting = false;
                colColumn.AllowFiltering = false;
                colColumn.Groupable = false;
                colColumn.Reorderable = false;

                if (task.ParentWorkflowConfiguration != null)
                {
                    colColumn.ColumnGroupName = "Group" + task.ParentWorkflowConfiguration.WorkflowID.ToString();
                }
                RadGridWorkflow.MasterTableView.Columns.Add(colColumn);
            }



            void OnGridItemCreated(object sender, GridItemEventArgs e)
            {
                if (e.Item is GridGroupHeaderItem)
                {

                    System.Diagnostics.Debug.WriteLine("GridGroupHeaderItem");
                }
                if (e.Item is GridHeaderItem)
                {
                    GridHeaderItem ghi = e.Item as GridHeaderItem;
                    foreach (GridTableHeaderCell tc in ghi.Cells)
                    {
                        int delimiterIndex = tc.Text.IndexOf('-');
                        int wfid;

                        if (delimiterIndex > -1 && int.TryParse(tc.Text.Substring(delimiterIndex + 1, tc.Text.Length - (delimiterIndex + 1)), out wfid))
                        {
                            WorkflowConfiguration task = _workflowConfig.FindTaskWithWorkFlowID(wfid);
                            if (task != null)
                            {
                                string state = tc.Text.Substring(0, delimiterIndex);
                                tc.Text = task.Name;
                                System.Web.UI.HtmlControls.HtmlGenericControl
                                    createDiv = new System.Web.UI.HtmlControls.
                                        HtmlGenericControl("div");
                                createDiv.Style.Add(HtmlTextWriterStyle.Width, "100%");
                                createDiv.Style.Add(HtmlTextWriterStyle.TextAlign,
                                    "center");
                                createDiv.InnerHtml = task.Name;
                                if (task.HasSubTasks())
                                {
                                    createDiv.Controls.Add(CreateHeaderButton(task, state));
                                }
                                tc.Controls.Add(createDiv);
                            }
                        }
                    }

                }
            }



            protected virtual void CreateGrid()
            {
                RadGridWorkflow.ID = "AlpsRadGridWorkflow";
                RadGridWorkflow.AllowCustomPaging = true;
                RadGridWorkflow.AllowFilteringByColumn = true;
                RadGridWorkflow.PageSize = 25;

                RadGridWorkflow.ClientSettings.Selecting.AllowRowSelect = true;
                RadGridWorkflow.ClientSettings.EnableAlternatingItems = true;
                RadGridWorkflow.EnableViewState = true;

                RadGridWorkflow.MasterTableView.NoDetailRecordsText = "No Records to Display";
                RadGridWorkflow.MasterTableView.DataKeyNames = new string[] { "OperationalWorkflowItemID" };
                RadGridWorkflow.MasterTableView.ClientDataKeyNames = new string[] { "OperationalWorkflowItemID" };
            }



            protected RadButton CreateHeaderButton(WorkflowConfiguration task, string state)
            {
                RadButton button = new RadButton();
                button.AutoPostBack = true;
                button.Image.ImageUrl = "~/Images/Menu/Empty.png";
                button.Image.IsBackgroundImage = true;
                button.CommandArgument = task.WorkflowID.ToString();
                button.CausesValidation = false;
                button.ButtonType = RadButtonType.StandardButton;

                if (state == "Expanded")
                {
                    button.ID = String.Format("RadButton{0}Collapse", task.WorkflowID);
                    button.CommandName = "Collapse";
                    button.ToolTip = String.Format("Collapse {0}", task.Name);
                    button.Icon.PrimaryIconCssClass = "rbPrevious";
                }
                else
                {
                    button.ID = String.Format("RadButton{0}Expand", task.WorkflowID);
                    button.CommandName = "Expand";
                    button.ToolTip = String.Format("Expand {0}", task.Name);
                    button.Icon.PrimaryIconCssClass = "rbNext";

                }

                button.Click += RadButtonExpandCollapse_Click;

                return button;
            }

    We have two classes derived from the base page, here is the code that is adding the grid columns that are not part of the hierarchy.

            protected override void AddGridColumns()
            {
                AlpsGridBoundColumn terminalColumn = new AlpsGridBoundColumn();
                terminalColumn.DataField = "Name";
                terminalColumn.UniqueName = "Name";
                terminalColumn.HeaderText = "Serial Number";
                terminalColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                terminalColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                terminalColumn.HeaderStyle.Width = 150;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(terminalColumn);

                AlpsGridBoundColumn subComponentColumn = new AlpsGridBoundColumn();
                subComponentColumn.DataField = "SubComponent";
                subComponentColumn.UniqueName = "SubComponent";
                subComponentColumn.HeaderText = "Sub-Component";
                subComponentColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                subComponentColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                subComponentColumn.HeaderStyle.Width = 100;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(subComponentColumn);

                AlpsGridBoundColumn organizationColumn = new AlpsGridBoundColumn();
                organizationColumn.DataField = "Owner";
                organizationColumn.UniqueName = "Owner";
                organizationColumn.HeaderText = "Owning Organization";
                organizationColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                organizationColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                organizationColumn.HeaderStyle.Width = 180;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(organizationColumn);

                AlpsGridBoundColumn gainingOrganizationColumn = new AlpsGridBoundColumn();
                gainingOrganizationColumn.DataField = "GainingOrganization";
                gainingOrganizationColumn.UniqueName = "GainingOrganization";
                gainingOrganizationColumn.HeaderText = "Gaining Organization";
                gainingOrganizationColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                gainingOrganizationColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                gainingOrganizationColumn.HeaderStyle.Width = 180;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(gainingOrganizationColumn);

                AlpsGridDateTimeColumn startColumn = new AlpsGridDateTimeColumn();
                startColumn.DataField = "StartDate";
                startColumn.UniqueName = "StartDate";
                startColumn.HeaderText = "Capture Date";
                startColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                startColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                startColumn.DataFormatString = Constants.Format.DATE_FORMAT;
                startColumn.Display = false;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(startColumn);

                AlpsGridDateTimeColumn endColumn = new AlpsGridDateTimeColumn();
                endColumn.DataField = "EndDate";
                endColumn.UniqueName = "EndDate";
                endColumn.HeaderText = "Completion Date";
                endColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                endColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                endColumn.CurrentFilterFunction = GridKnownFunction.IsNull;
                endColumn.DataFormatString = Constants.Format.DATE_FORMAT;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(endColumn);

                AlpsGridCheckBoxColumn activeColumn = new AlpsGridCheckBoxColumn();
                activeColumn.AllowFiltering = true;
                activeColumn.DataField = "Active";
                activeColumn.UniqueName = "Active";
                activeColumn.HeaderText = "Active";
                activeColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                activeColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                activeColumn.HeaderStyle.Width = Unit.Pixel(75);
                activeColumn.CurrentFilterFunction = GridKnownFunction.EqualTo;
                activeColumn.CurrentFilterValue = "true";
                activeColumn.Display = false;
                activeColumn.Visible = false;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(activeColumn);

                AlpsGridBoundColumn commentColumn = new AlpsGridBoundColumn();
                commentColumn.DataField = "Comments";
                commentColumn.UniqueName = "Comments";
                commentColumn.HeaderText = "Comments";
                commentColumn.HeaderStyle.VerticalAlign = VerticalAlign.Bottom;
                commentColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Center;
                commentColumn.HeaderStyle.Width = 150;
                commentColumn.Display = false;
                AlpsRadGridWorkflow.MasterTableView.Columns.Add(commentColumn);
            }

  2. Pavlina
    Admin
    Pavlina avatar
    6084 posts

    Posted 27 May Link to this post

    Hello,

    Could you try to comment the custom css class you have set for the Expand icon and see it this makes any difference?
    button.Icon.PrimaryIconCssClass = "rbPrevious";

    However, in order to say why expand/collapse is not available after the upgrade we need to inspect the grid itself or have a runnable project for local testing.

    Regards,
    Pavlina
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. John
    John avatar
    9 posts
    Member since:
    Dec 2012

    Posted 01 Jun in reply to Pavlina Link to this post

    I have created a project that shows the issue, but am unable to upload the zip file.  I am awaiting government approval to renew my license.  What can I do in the mean time?
  5. Pavlina
    Admin
    Pavlina avatar
    6084 posts

    Posted 06 Jun Link to this post

    Hello,

    Meanwhile you can provide a live URL where we can inspect the problem and advice you further.

    Regards,
    Pavlina
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  6. John
    John avatar
    9 posts
    Member since:
    Dec 2012

    Posted 06 Jun in reply to Pavlina Link to this post

    Sorry, that is not possible.  The software project is for government use, and is marked at FOUO.  I was able to strip out the issue and have a project, but it is not live anywhere.

  7. Pavlina
    Admin
    Pavlina avatar
    6084 posts

    Posted 07 Jun Link to this post

    Hi,

    What happened with the license renewal?

    Regards,
    Pavlina
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  8. John
    John avatar
    9 posts
    Member since:
    Dec 2012

    Posted 08 Jun in reply to Pavlina Link to this post

    Found out today that we have the approval to renew the licenses, how long the paperwork will take I don't know.
  9. Pavlina
    Admin
    Pavlina avatar
    6084 posts

    Posted 09 Jun Link to this post

    Hello,

    At this point I recommend you to contact our Sales team to get more details about prices and paperwork.
    https://www.progress.com/company/contact

    Regards,
    Pavlina
    Telerik
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  10. John
    John avatar
    9 posts
    Member since:
    Dec 2012

    Posted 15 Jun in reply to Pavlina Link to this post

    My license has been renewed.  I am closing this post, and opening a support ticket.  I can't upload a zip file with the project here.
Back to Top
UI for ASP.NET Ajax is Ready for VS 2017
