Active from screen capture

3 posts, 0 answers
  1. Chian Yuh
    Chian Yuh avatar
    3 posts
    Member since:
    Jul 2015

    Posted 06 Nov 2015 Link to this post

    I have 2 forms:1 is parent form and another is child form. When I click capture the active screen, the title(Black area) of the image that I captured will be in black color. I couldn't capture the whole active screen(child form) including the form title.



    Here is my code:



    private void btnCapture_Click(object sender, EventArgs e)

    {

        Form activeChild = this.ActiveMdiChild;

    if (activeChild == null){MessageBox.Show("no active form child found!");return;}else{SaveAsBitmap(activeChild, activeChild + ".Jpeg");MessageBox.Show("Screen Captured successfully.");}}public void SaveAsBitmap(Control control, string fileName){SaveFileDialog dialog = new SaveFileDialog(); dialog.Filter = "JPeg Image|*.jpg|Bitmap Image|*.bmp|Gif Image|*.gif";if (dialog.ShowDialog() == DialogResult.OK){Graphics g = control.CreateGraphics();Bitmap bmp = new Bitmap(control.Width, control.Height); control.DrawToBitmap(bmp, new Rectangle(0, 0, control.Width, control.Height)); bmp.Save(dialog.FileName, ImageFormat.Jpeg);//bmp.Save("C://test.jpg", ImageFormat.Jpeg);}}

  2. Chian Yuh
    Chian Yuh avatar
    3 posts
    Member since:
    Jul 2015

    Posted 06 Nov 2015 Link to this post

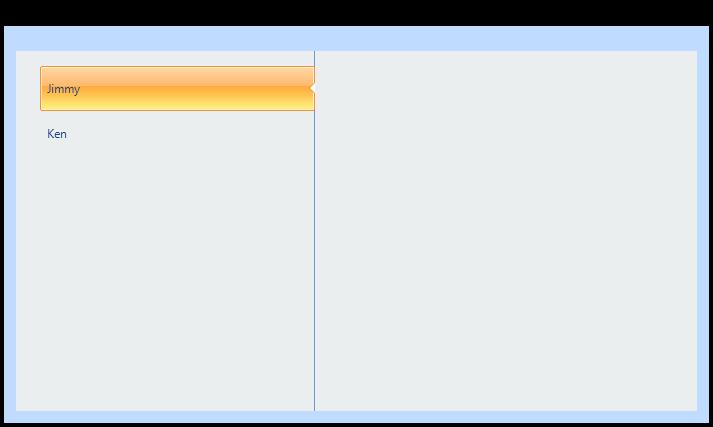

    Sorry. Please refer to this. I attached the image.
    Thank you.

     Code:

     private void btnCapture_Click(object sender, EventArgs e)

       {
            Form activeChild = this.ActiveMdiChild;
            if (activeChild == null)

    {
                MessageBox.Show("no active form child found!");
                return;
            }
            else
            {
                SaveAsBitmap(activeChild, activeChild + ".Jpeg");
                MessageBox.Show("Screen Captured successfully.");
            }
        }

        public void SaveAsBitmap(Control control, string fileName)
        {
            SaveFileDialog dialog = new SaveFileDialog();
            dialog.Filter = "JPeg Image|*.jpg|Bitmap Image|*.bmp|Gif Image|*.gif";
            if (dialog.ShowDialog() == DialogResult.OK)
            {
                Graphics g = control.CreateGraphics();
                Bitmap bmp = new Bitmap(control.Width, control.Height);
                control.DrawToBitmap(bmp, new Rectangle(0, 0, control.Width, control.Height));
                bmp.Save(dialog.FileName, ImageFormat.Jpeg);
                //bmp.Save("C://test.jpg", ImageFormat.Jpeg);

            }
        }

  3. UI for WinForms is Visual Studio 2017 Ready
  4. Hristo Merdjanov
    Admin
    Hristo Merdjanov avatar
    711 posts

    Posted 09 Nov 2015 Link to this post

    Thank you for writing.

    I managed to reproduce the incorrect behavior and I logged this issue in our feedback portal. You can track its progress, subscribe for status changes and add your vote/comment to it on the following link - feedback item. I have also updated Telerik points

    Until a permanent fix becomes available please use the following workaround:
    public Form1()
    {
        InitializeComponent();

        this.IsMdiContainer = true;
        this.Load += Form1_Load;
    }

    private void Form1_Load(object sender, EventArgs e)
    {
        RadForm form = new RadForm();
        form.Text = "MDI Child 1";
        form.MdiParent = this;
        form.Show();
    }

    private void radButton1_Click(object sender, EventArgs e)
    {
        RadForm activeChild = this.ActiveMdiChild as RadForm;
        if (activeChild == null)
        {
            MessageBox.Show("no active form child found!");
            return;
        }
        else
        {
            SaveAsBitmap(activeChild, activeChild + ".Jpeg");
            MessageBox.Show("Screen Captured successfully.");
        }
    }

    public void SaveAsBitmap(Form form, string fileName)
    {
        Bitmap bmpScreenshot = new Bitmap(form.Bounds.Width, form.Bounds.Height, PixelFormat.Format32bppArgb);
        Graphics gfxScreenshot = Graphics.FromImage(bmpScreenshot);
        Point pt = form.Parent.PointToScreen(form.Location);
        gfxScreenshot.CopyFromScreen(pt.X, pt.Y, 0, 0, form.Bounds.Size, CopyPixelOperation.SourceCopy);
        SaveFileDialog saveImageDialog = new SaveFileDialog();
        saveImageDialog.Title = "Select output file:";
        saveImageDialog.Filter = "JPeg Image|*.jpg|Bitmap Image|*.bmp|Gif Image|*.gif";
        if (saveImageDialog.ShowDialog() == DialogResult.OK)
        {
            bmpScreenshot.Save(saveImageDialog.FileName, ImageFormat.Png);
        }
    }

    I hope this helps. Should you have further questions please do not hesitate to write back.

    Regards,
    Hristo Merdjanov
    Telerik
