How To Drag A File From Desktop And Drop It In RadTreeView Placed In WPF Application

by Kiril Stanoev
March 29, 2011 Desktop, WPF 0 Comments




Sometimes we need to extend the RadTreeView’s Drag’and’Drop abilities in order to accept external data from other applications or Windows.

In this post I will show you how to successfully drag and drop images from  windows desktop / windows explorer to a RadTreeView located in a running WPF Application.

Imagine we want to make a tree that shows pictures and names of our favourite football teams and our favourite players in these teams.

How can we achieve this ?

We can first create some ViewModels: PlayerViewModel, TeamViewModel, LeagueViewModel that all inherit from BaseViewModel. The BaseViewModel will implement the INotifyPropertyChanged interface and will expose Name(string) and ImgSource(Uri) properties.

Then we will create three different templates for the different ViewModels and a template selector class : ItemTemplateSelector. It will select the different templates depending of the ViewModel`s type.

Now lets examine the main drag and drop logic in our application.We will use the ItemPreparedEvent handler of the RadTreeView in order to subscribe for the “Drop” and “DragOver” events of every RadTreeViewItem that will be generated during the execution of the application.
“DragOver” is used to ensure that when we drag a file over a RadTreeViewItem, it expands and gets selected.
void PreparedItem_DragOver(object sender, DragEventArgs e)
        {
            var currentItemUndeMouse = sender as RadTreeViewItem;
            if (currentItemUndeMouse != null && !currentItemUndeMouse.IsSelected)
            {
                currentItemUndeMouse.IsSelected = true;
                currentItemUndeMouse.IsExpanded = true;
            }
            e.Handled = true;
        }
In “Drop”, we get list of strings representing the physical locations of the files to be dropped with DataObject.GetFileDropList() method:

var fileNames = ((DataObject)e.Data).GetFileDropList();

Then we will iterate over the list, check whether the file is in the correct format and create TeamViewModel or PlayerViewModel depending of the Destination item`s type.

private void PreparedItem_Drop(object sender, DragEventArgs e)
       {
           var destinationItem = sender as RadTreeViewItem;
           var fileNames = ((DataObject)e.Data).GetFileDropList();
           if (destinationItem != null)
           {
               foreach (var fileName in fileNames)
               {
                   if (!(fileName.EndsWith(".jpeg") || fileName.EndsWith(".jpg") || fileName.EndsWith(".png")))
                   {
                       MessageBox.Show("The dragged file is not png or jpg!", "Wrong operation",
                           MessageBoxButton.OK, MessageBoxImage.Warning, MessageBoxResult.OK);
                       e.Handled = true;
                       return;
                   }
                   int startIndexOfname = fileName.LastIndexOf("\\");
                   int endIndexOfname = fileName.LastIndexOf(".");
                   string name = fileName.Substring(startIndexOfname + 1, endIndexOfname - startIndexOfname - 1);
                   if (destinationItem.Item is PlayerViewModel)
                   {
                       return;
                   }
                   else if (destinationItem.Item is TeamViewModel)
                   {
                       (destinationItem.Item as TeamViewModel).Players.Add(
                           new PlayerViewModel()
                           {
                               Name = name,
                               ImgSource = new Uri(fileName, UriKind.Absolute)
                         );
                   }
                   else
                   {
                       (destinationItem.Item as LeagueViewModel).Teams.Add(
                          new TeamViewModel()
                          {
                              Name = name,
                              ImgSource = new Uri(fileName, UriKind.Absolute)
                          });
                   }
                   destinationItem.IsExpanded = true;
               }
               e.Handled = true;
           }
       }

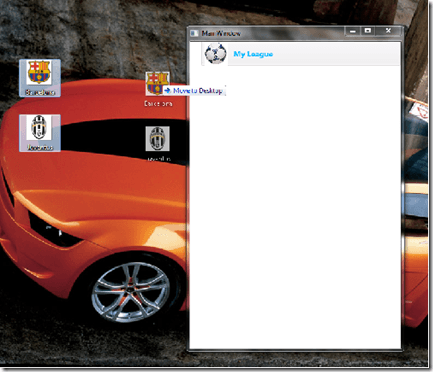

Now let’s test our application. First we will add some Teams in our League:
moveteams

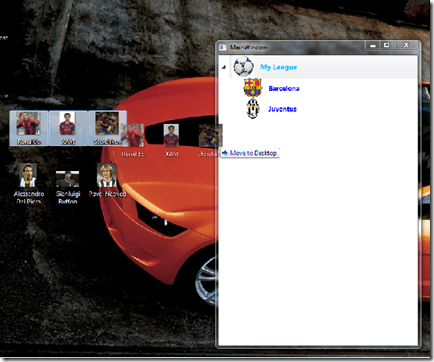

Then we add some Players in the teams:

moveplayers

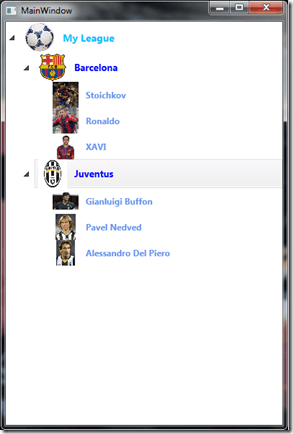

And here is the desired result:

final

=====================================================================

You can find the full source code of this applidcation and the used images below.

TreeDragFromExternalProgram

Images

=====================================================================

Feel free to ask if you need additional info.
