Many weeks back I started a series entitled “ HTML5 For ASP.NET Developers ”.  The response was fantastic, and we begin to work our way through the charted waters of modern web development starting from the very beginning.

In Hello jQuery , we went over the absolute fundamentals of working with jQuery in ASP.NET WebForms and looked at how to use some of the developer tools.

In Hello Services , we investigated how to build restful services with WebAPI.  This was my personal favorite as I learned a ton doing it, and even did it wrong the first time!  Don’t worry, I only posted the right one for you.

In Hello HTML5 we talked about what HTML5 is and is not, and looked at some very basic concepts, such as pollyfilling.

At this point, you should be comfortable enough with the platform and terminology for us to dive in and leverage all we have learned up until now to create an HTML5 application.

All of this build-up, and we are finally ready to talk about the reason you came to this site in the first place.  Kendo UI.  We will be breaking this up into how ever many modules it takes for us to get a good mastery of Kendo UI in ASP.NET.

In this tutorial, you will work with the most complex widget, the Kendo UI Grid as well as one of the core components, the Kendo UI DataSource .  It is absolutely essential to understand how these two work in your app, and how they work together.  We will create a grid, and wire it up to an ASP.NET WebAPI service while doing some heavy server lifting along the way.

As always, feel free to watch the screencast, or skip down to the written content.

Screencast






Written Content



This tutorial builds off of the Hello Services module, so it’s highly recommended that you download that project from GitHub here before we get started.  If you are interested in seeing the completed solution, you can download that here .

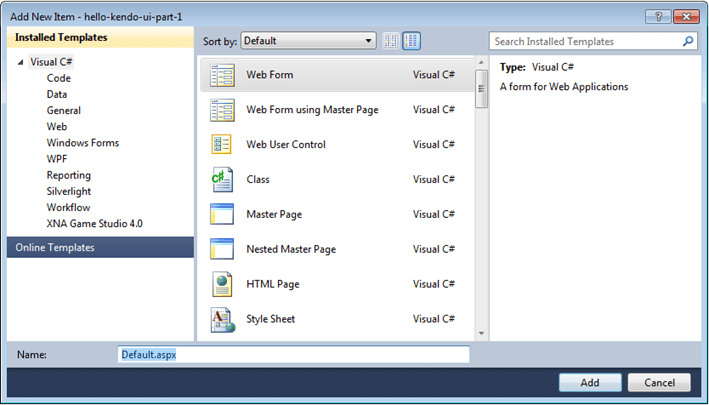

In the Hello Services project, delete the Site.Master , About.aspx and Default.aspx pages.  Add a new WebForm to the project and call it Default.aspx .

add-new-webform

When the document comes up, delete all of the unnecessary DOCTYPE declaration and HTML namespacing.  If you refer to Hello HTML5 , you will remember that none of this is necessary and really just clutters up the code.

Removing the <form>

I’m going to have you remove the form tag, but just a word about why before you actually do it.

The <form> tag in the page is what WebForms uses to post any data in the page back to the server and then back again. By default, WebForms pages post back to themselves. The server then takes this form data (any .NET controls in the page) and manipulates their values based on methods you have defined in the code behind. There is a whole page lifecycle that goes into effect here. Since we are essentially building an SPA , we don’t need this form.

Now that you have removed the form tag, the server tag at the top of the page declaring the page language and code behind is also not necessary. We are going all straight HTML here, so also remove the runat attribute from the head.

Remove Unnecessary Markup

<!DOCTYPE html>
<html>
    <head>
        <title></title>
    </head>
    <body>
    </body>
</html>



Add Kendo UI

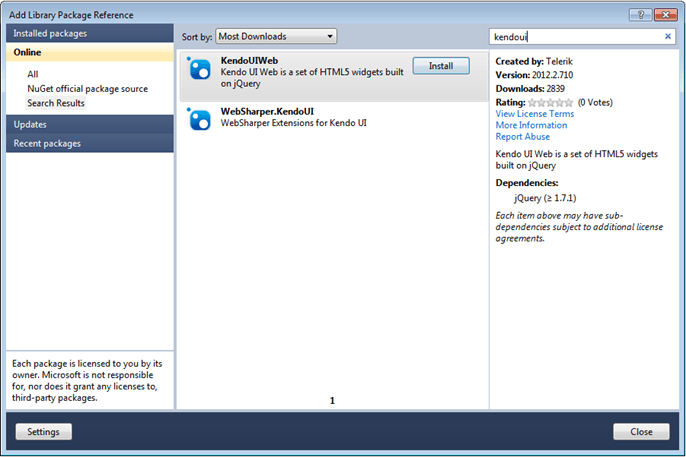

Add Kendo UI to your project by installing it from NuGet.  This will also install jQuery.  Right-click the project and select add library package reference . Select online from the left-hand side and search for kendoui.   Select the package and choose install.

While you are free to install and try out Kendo UI, please make sure that you have a licensed copy before using Kendo UI in a production application.  Click here for more information on Kendo UI licensing.

kendo-ui-nuget

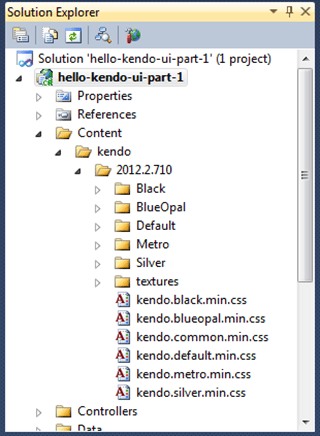

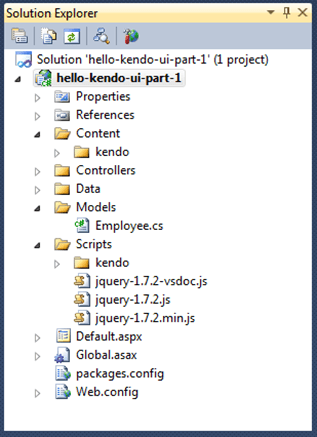

Notice that you now have a Content folder that contains a kendo subfolder.  You also have a Scripts folder which also has a kendo subfolder.

solution-explorer-content     solution-explorer-scripts

Add Kendo UI To The Default Page

In order to build with Kendo UI, you need to include it’s styles, jQuery and the Kendo UI JavaScript files.  Out of the Content folder and kendo/version subfolder, drag the kendo.common.min.css file to the head of the page, just below <title> .  This style sheet always needs to be included.  It’s used in all the themes.  Next, pick your favorite theme and drag that stylesheet to the head of the page.  For this example, I used the default style which is kendo.default.min.css .

Expand the Scripts folder.  Select jQuery-1.7.2.min.js and drag it into the body of the page.  We put the script files in the body of the page because it’s best practice to load scripts last as they will delay loading of the whole page.  Loading them last ensures that your application doesn’t suffer from seemingly poor performance while waiting on a JavaScript file.

Next expand the kendo subfolder (and the appropriate version subfolder under that – 2012.2.710 at the time of this writing) and drag kendo.web.min.js out and drop it just below jQuery.  It’s important to load jQuery BEFORE loading Kendo UI as Kendo UI takes a dependency on jQuery and expects it to be loaded.

Type Not Required

It turns out that Script includes do not need a type.  If you do not specify a type, it is assumed to be JavaScript and parsed as such.  This is safe in every browser.  Go ahead and remove the type attribute off the script tags.

When you are done pruning, your code should be very simple and look like this…

Kendo UI Added To The Page

<!DOCTYPE html>

<html>
    <head>
        <title>Hello Kendo UI</title>
        <link href="Content/kendo/2012.2.710/kendo.common.min.css" rel="stylesheet" type="text/css" />
        <link href="Content/kendo/2012.2.710/kendo.default.min.css" rel="stylesheet" type="text/css" />
    </head>
    <body>

        <script src="Scripts/jquery-1.7.2.min.js"></script>
        <script src="Scripts/kendo/2012.2.710/kendo.web.min.js"></script>

    </body>
</html>



We now have everything it takes to get started.  Since we already have an employees endpoint from the Hello Services modules, we will use the grid to display those employees.  Don’t worry.  This is going to get a lot more complex as we go.  We are just starting out simple.

Make a grid by adding an empty div to the page with an id of employeesGrid .  We will select this later with jQuery to turn it into a Kendo UI Grid .

Grid Markup

<divid="employeesGrid"></div>



Now we need to turn this grid into a Kendo UI Grid using JavaScript.  To do that, select the div by it’s ID with a jQuery selector and then call the kendoGrid function.  Inside that function, you will need to create the Kendo UI DataSource for the grid and set its read endpoint to the Get method on the EmployeesController .  If you don’t recall, the Get method simply specifies that the controller should respond to a GET HTTP request at the api/employees endpoint.

Create A Kendo UI Grid

$(function () {
    $("#employeesGrid").kendoGrid({
        dataSource: new kendo.data.DataSource({
            transport: {
                read: "api/employees"
            }
        })
    });
});



Now with that simple piece of markup and small bit of JavaScript, you have created a Kendo UI Grid .

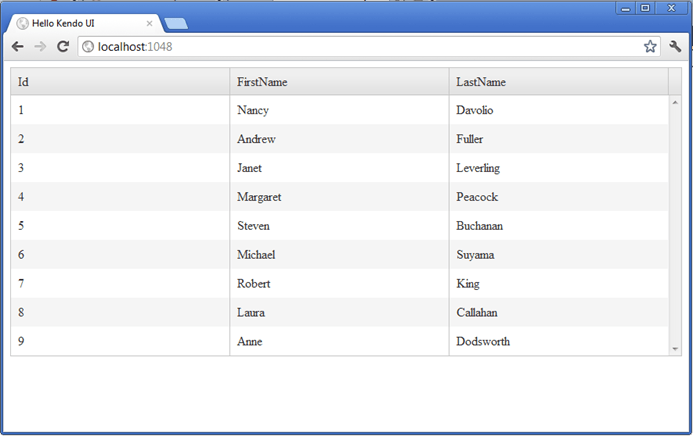

kendo-grid-preview

Kendo UI automatically creates columns for each of the data items and assigns the field name as the column header.  We want to change this to make it more user friendly. Specifically, we don’t need to display the Id, and we want to format the First Name and Last Name columns so they display headers in spaced title case.  Right now they are title cased, but there is no space.

Specify Grid Columns

$(function () {
    $("#employeesGrid").kendoGrid({
        columns: [
            { field: “FirstName”, title: “First Name” },
            { field: “LastName”, title: “Last Name” }
        ],
        dataSource: new kendo.data.DataSource({
            transport: {
                read: "api/employees"
            }
        }),
        sortable: true
    });
});



Now the grid displays the column headers correctly and does not display the unnecessary Id column.

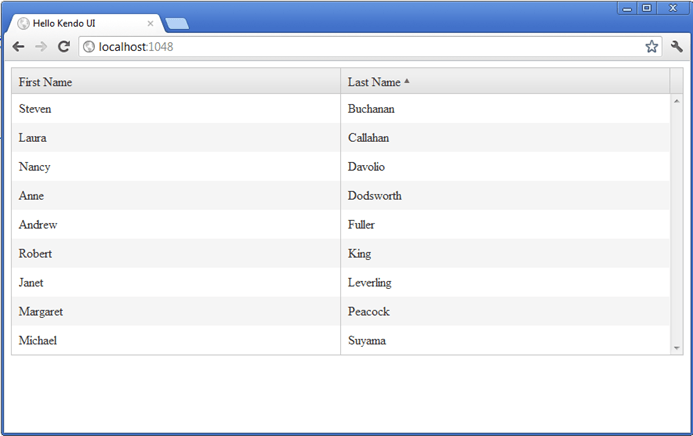

grid-preview-with-columns-and-sorting

You can also enable drag-and-drop grouping by setting the groupable: true flag, as well as multi-column sorting, aggregating, and paging.

This is all great when there are only a few items in your grid.  But what happens when there are hundreds of items in the grid.  At some point, you want to push actions back to the server.  Let’s take a look at how to do that.

Performing Grid Actions Server-Side

Assume that this grid is backed by data with thousands of rows, not just 10.  In this case, you would want to do some paging on the grid.  You could show possibly 10 rows per page.  Maybe 20.  While you could easily enable this in the grid client-side, you really need to do this paging on the server.  Let’s wire up the grid to the server so that we can perform paging actions on the database which will really boost the performance of massive record sets.

Setup Paging In The Grid

You need to setup paging in the grid first.  To do that, simply set pageable: true on the grid, and then set the pageSize on the DataSource.  I’m setting the pageSize to 3 since I only have 10 records to work with.

Configure Grid For Paging

$(function () {
    $("#employeesGrid").kendoGrid({
        columns: [
            { field: “FirstName”, title: “First Name” },
            { field: “LastName”, title: “Last Name” }
        ],
        dataSource: new kendo.data.DataSource({
            transport: {
                read: "api/employees"
            },
            pageSize: 3
        }),
        pageable: true
    });
});



Now the grid is setup for paging.

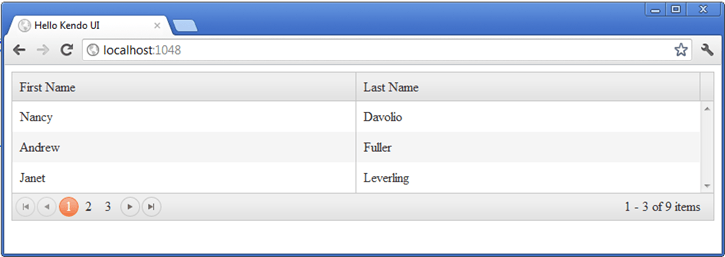

grid-preview-client-paging

You need to push this paging to the server.  To tell Kendo UI to do this, simply toggle the serverPaging: true on the DataSource in the grid.

Tell Grid To Send Paging To The Server

$(function () {
    $("#employeesGrid").kendoGrid({
        columns: [
            { field: “FirstName”, title: “First Name” },
            { field: “LastName”, title: “Last Name” }
        ],
        dataSource: new kendo.data.DataSource({
            transport: {
                read: "api/employees"
            },
            pageSize: 3,
            serverPaging: true
        }),
        pageable: true
    });
});

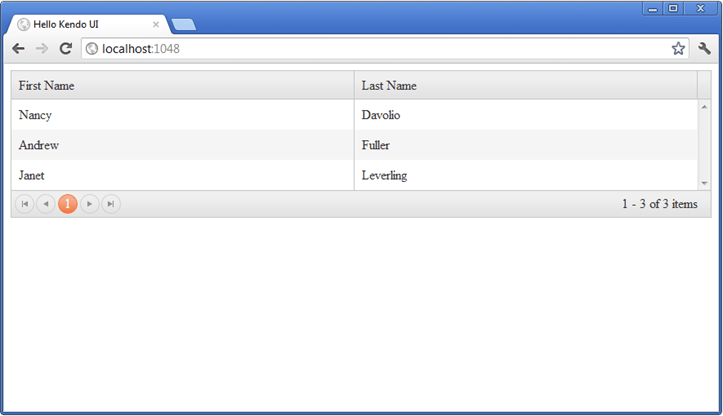

grid-preview-server-paging-only-1-page

The grid now displays only 1 page.  The reason for this is that it is expecting the server to send it some information that we have not yet specified.  Open up the Dev Tools by pressing ctrl+shift+i in Chrome or F12 in IE.  You will have noticed that I switched to using Chrome as my primary browser.  The reason is simply the robust nature of it’s developer tools when compared to IE.  You will want to test your application on whichever browser you are targeting for deployment.

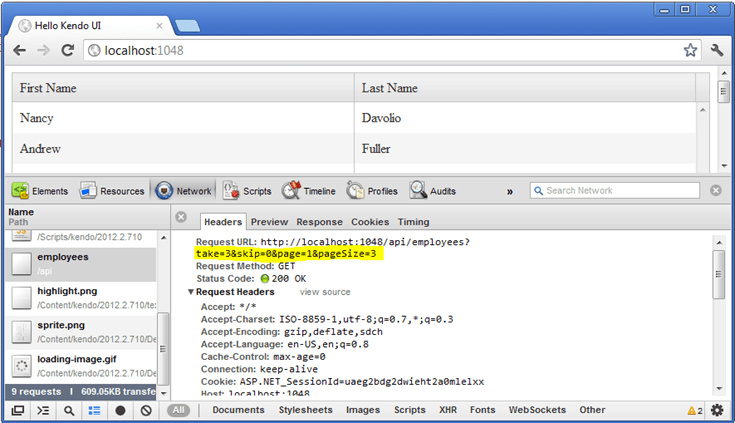

An inspection of the request in the DevTools reveals that Kendo UI is now sending take, skip and pageSize parameters back to the WebAPI service.  You need to handle these parameters in the method on the server.

grid-preview-server-paging-broken-dev-tools

Handling Request Parameters

If you recall from the Hello Services post, you mapped a URL back to a method with an optional id parameter that may or may not be after employees in the URL path.  But these parameters for paging are in the query string.  How do we get to these parameters?

These parameters can be retrieved off of the Request object.  You can create a reference to this variable at the top of your EmployeesController class for brevity.  The you just need to look for the parameters by name.

The take parameter tells you how many records you need to fetch (i.e. the page size).

The skip parameter tells you how many records to skip before you start fetching records.

Luckily, LINQ has these functions built right in and they are dead simple to use.  Simply retrieve the values off of the Request parameter and  then call the Skip and Take methods on your query to the Employees table.

Create A Kendo UI Grid

HttpRequestrequest =HttpContext.Current.Request;publicList
